Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135]
Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - ...

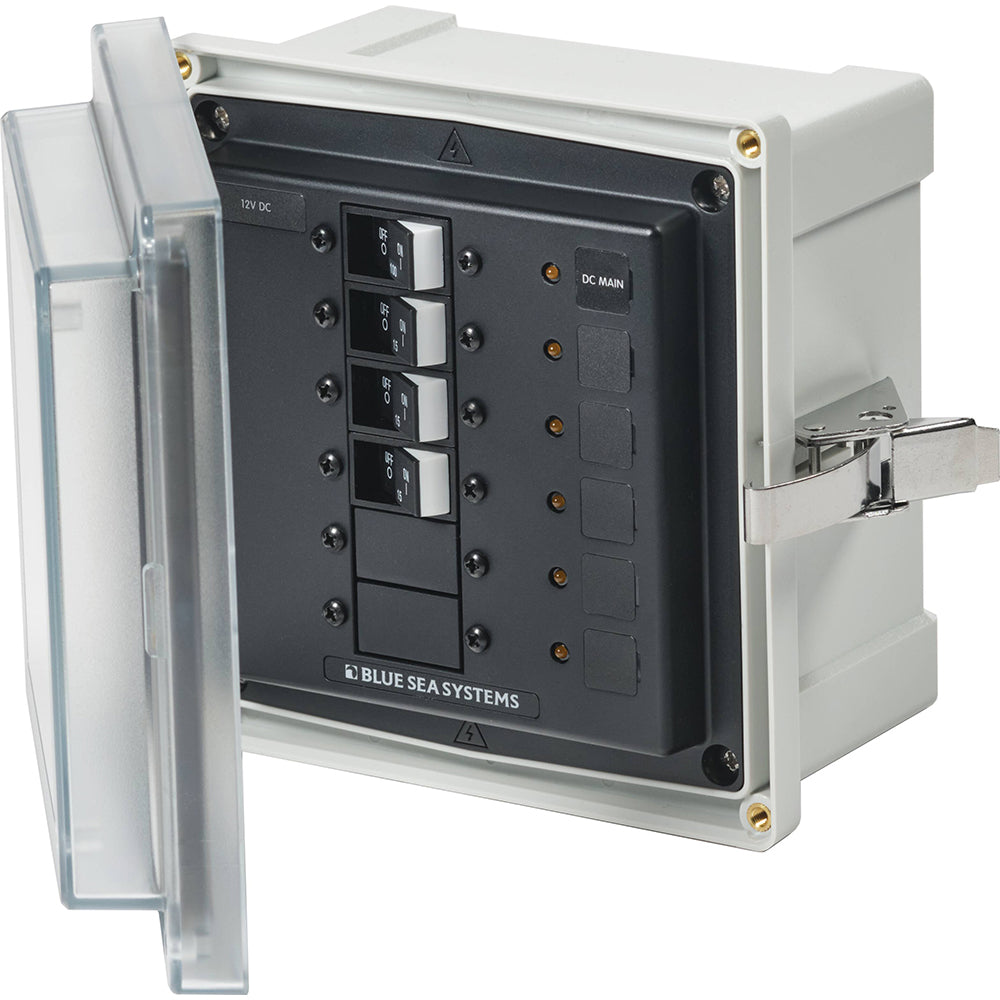

3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC
The 3135-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC
In the Box:
- 3135 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Quick Guide (pdf)
Brochure (pdf)
