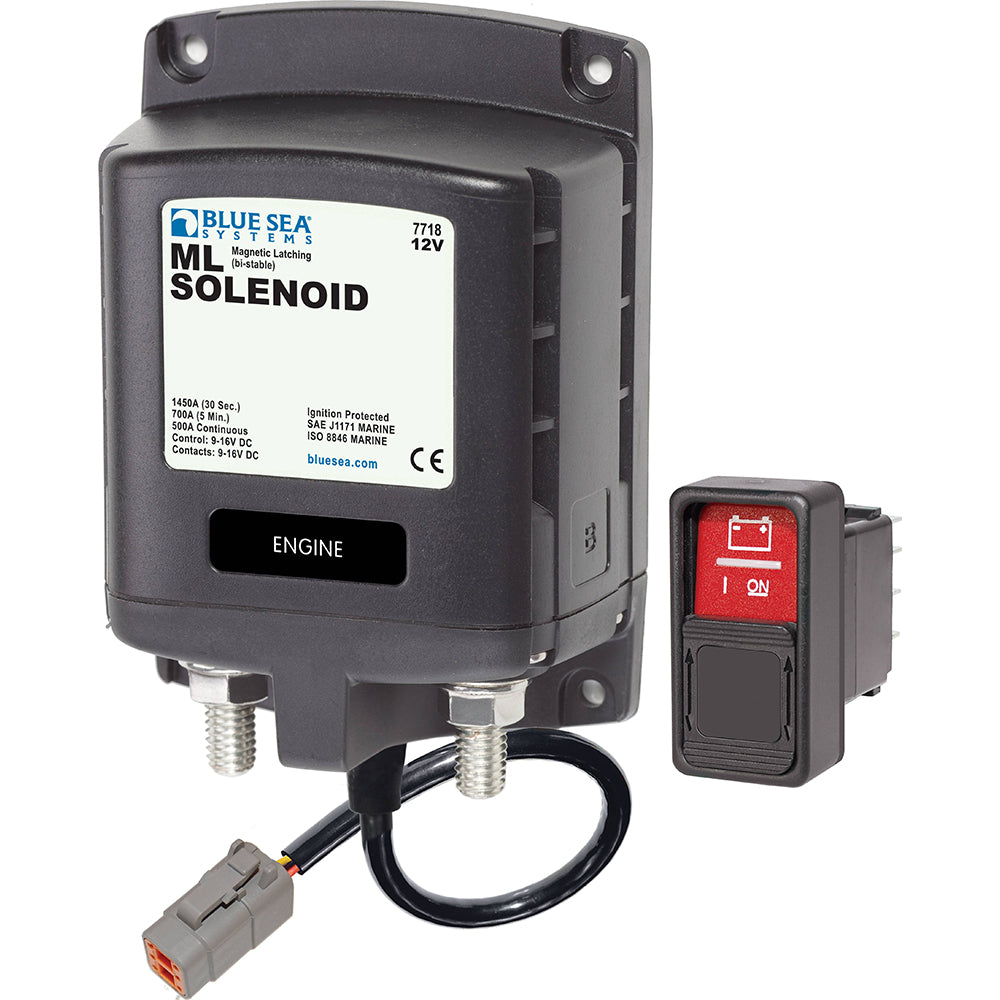

Blue Sea 7718100 - ML-Series Solenoid Switch - Deutsch Connector - 12V [7718100]
Blue Sea 7718100 - ML-Series Solenoid Switch - Deutsch Connector - 12V [7718100] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Blue Sea 7718100 - ML-Series Solenoid Switch - Deutsch Connector - ...
7718100 - ML-Series Solenoid Switch - Deutsch Connector - 12V
For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.
Features:
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state
- 3/8"- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
Technical Specifications:
- Control Circuit Voltage - 10.1 to 16.5 V DC
- Control Circuit Connection - Deutsch DTM
- Nominal Voltage - 12V DC
- Coil Function - Auto-releasing
- Amperage Operating Current - OFF - 8mA and ON 13mA
- Mechanical Endurance - 100,000 Cycles
- Terminal Ring Diameter Clearance - 1.18" (30mm)
- Terminal Stud Length - .875" (22mm)
- Terminal Stud Size - 3/8" - 16 (M10)
In the Box:
- 7718100 Solenoid
- Contura Switch w/integrated LED
- Instruction Manual
*Sold as an Individual
