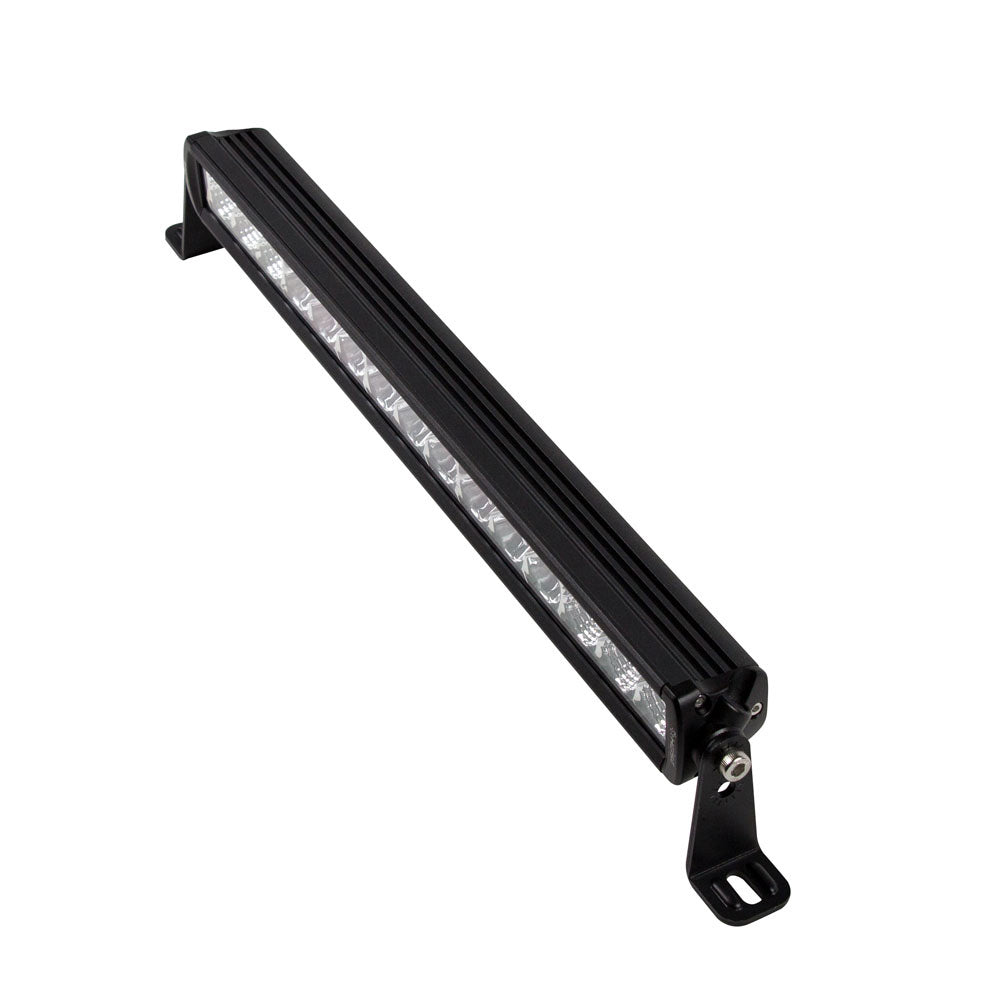

HEISE Single Row Slimline LED Light Bar - 20-1/4" [HE-SL2014]
HEISE Single Row Slimline LED Light Bar - 20-1/4" [HE-SL2014] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HEISE Single Row Slimline LED Light Bar - 20-1/4" [HE-SL2014]
Single Row Slimline LED Light Bar - 20-1/4"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 45W (15–3W OSRAM LEDs)
- Raw Lumens: 3600
- LUX @ 10M: 1280
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Mounting: Side and Bottom
- Hole Dimensions:
- Brackets turned inward – 20"
- Brackets turned outward – 22"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 2"
- Depth of Light Bar Itself: 2"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: 2.4 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 20.25"
- Housing: Black
- Voltage - Input Range (Volts): 12/24v
- Box Dimensions: 5"H x 6"W x 31"L WT: 4.6 lbs
- UPC: 086429317363
