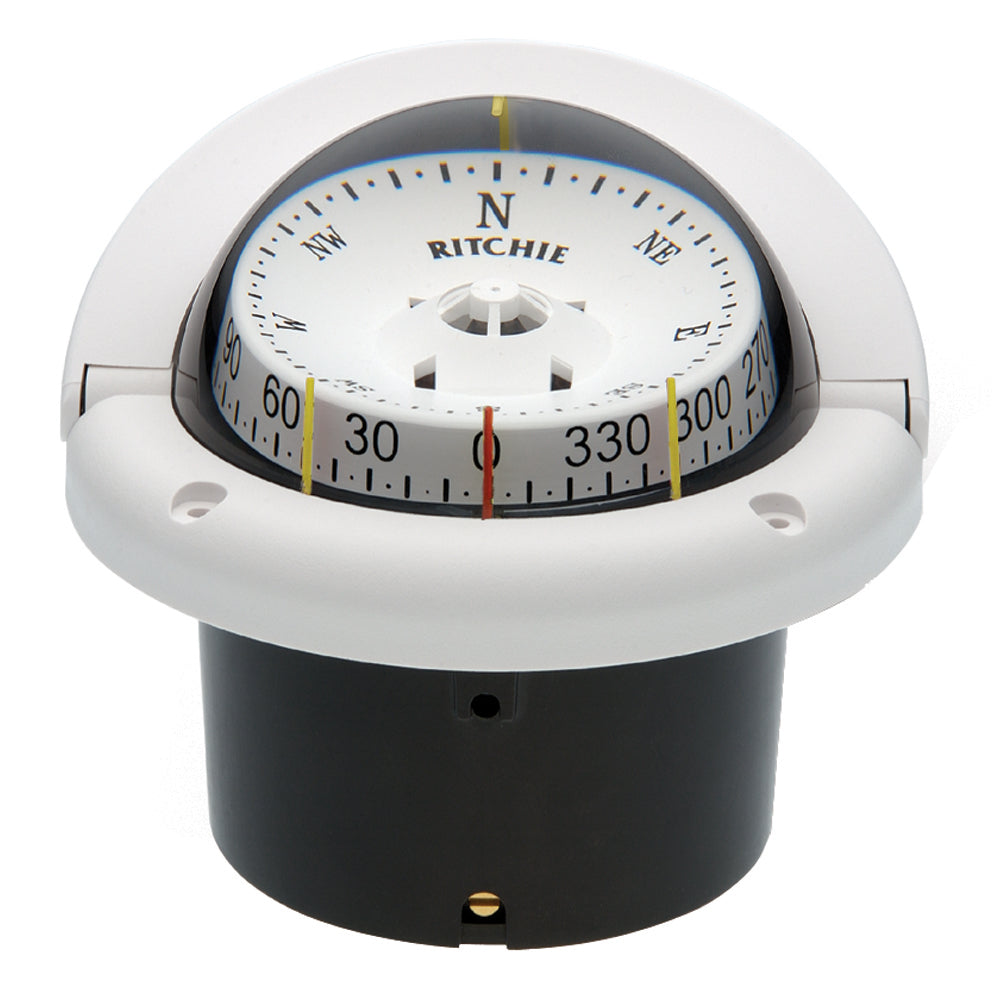

Ritchie HF-743W Helmsman Compass - Flush Mount - White [HF-743W]
Ritchie HF-743W Helmsman Compass - Flush Mount - White [HF-743W] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ritchie HF-743W Helmsman Compass - Flush Mount - White [HF-743W]
HF-743W - Helmsman
Features:
- 3 3/4″ (95 mm) Open Face Dial or CombiDial
- Easily Installed, Fits 4″ (102 mm) Mounting Hole
- Exclusive Built-in Green NiteVu Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- 45 Degree Lubber Lines
- High Temperature Composite Construction for Extended Operating Range
- Adapter Rings Available. Sold separately. 6″ (153 mm)
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2lbs (907g)
Notes:
All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.
Some custom built OEM models may have different lighting.
Specifications:
- Read: Both
- Lubber Lines: Yes
- Backlight: Yes
- Mounting Style: Flush
- Box Dimensions: 7"H x 8"W x 8"L WT: 2.1 lbs
- UPC: 010342138286
Quick Guide (pdf)
Owner's Manual (pdf)
