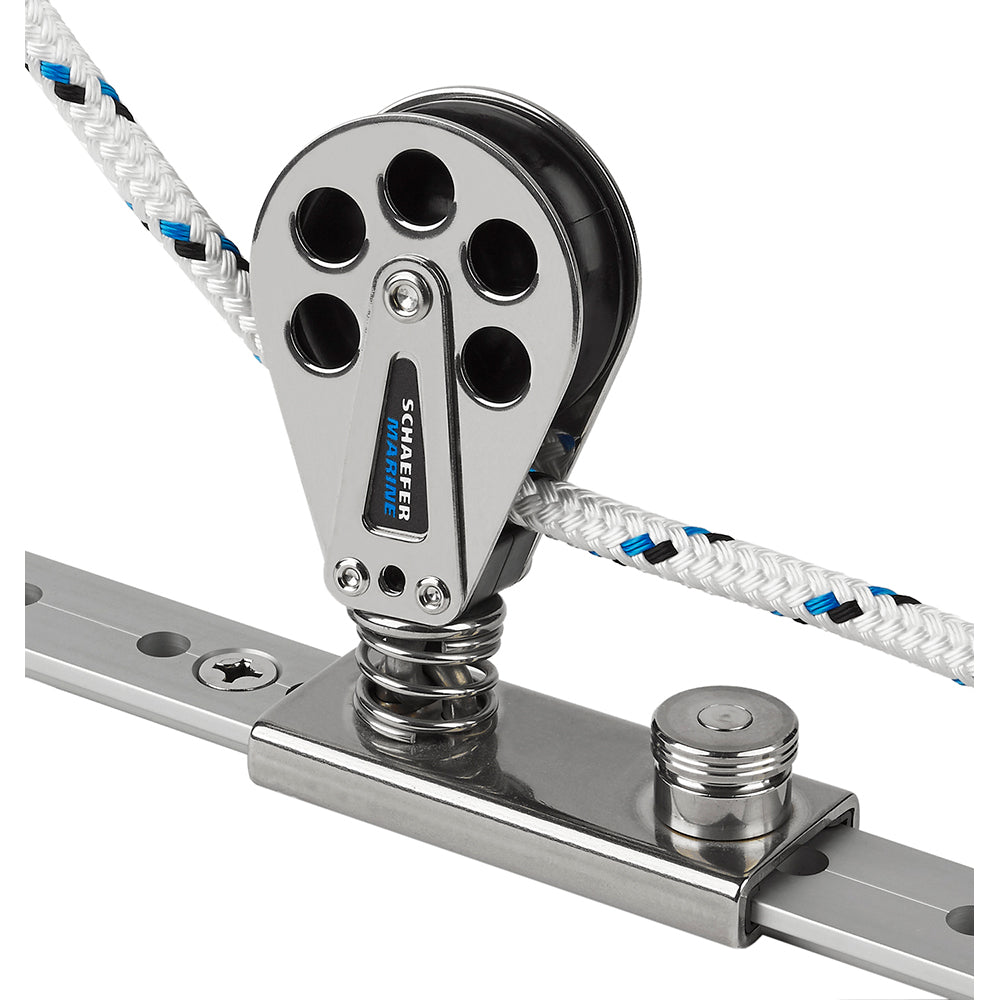

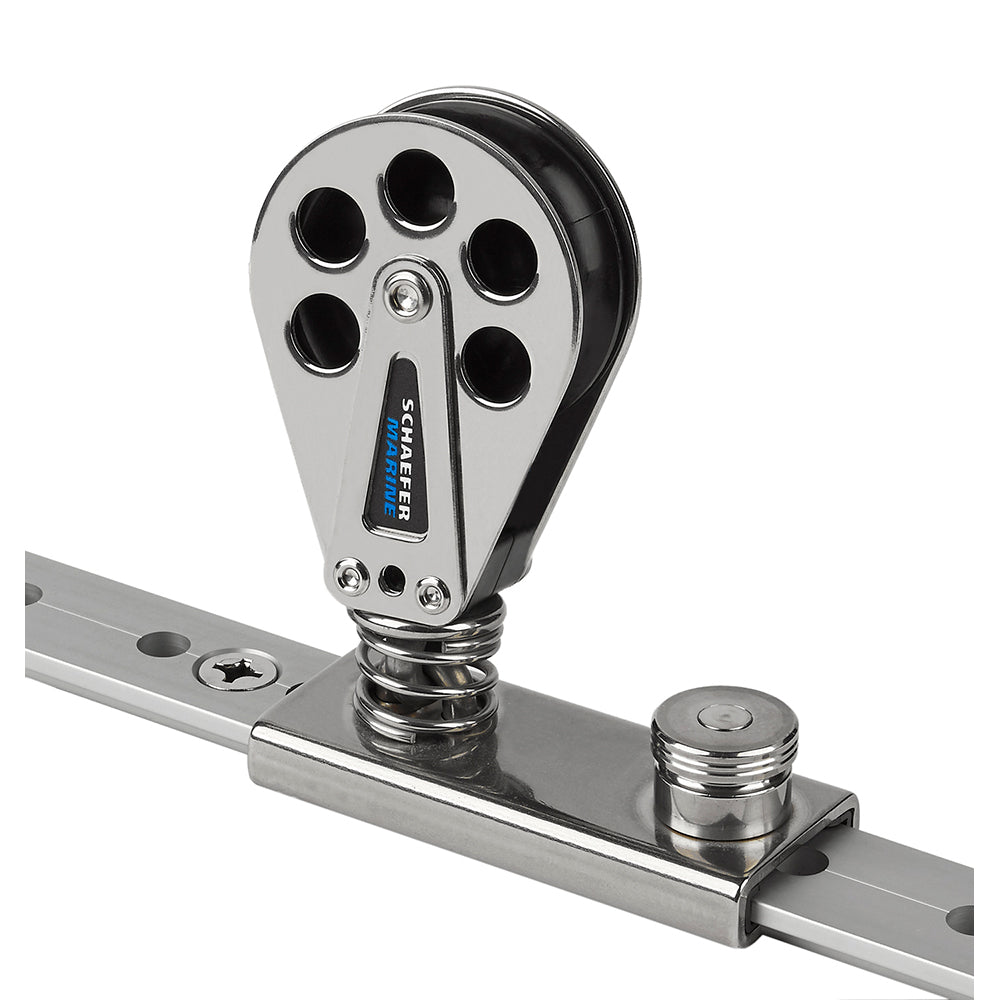

Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92]
Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-...
Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
- Max. Boat Length 33' (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8" (60 mm)
- Max Line 1/2" (12 mm)
- Length 4" (102 mm)
- Width 1-9/16" (39 mm)
- Height 4-15/16" (126 mm)
- Bearing Height 2-3/8" (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 14 oz. (397 g)
