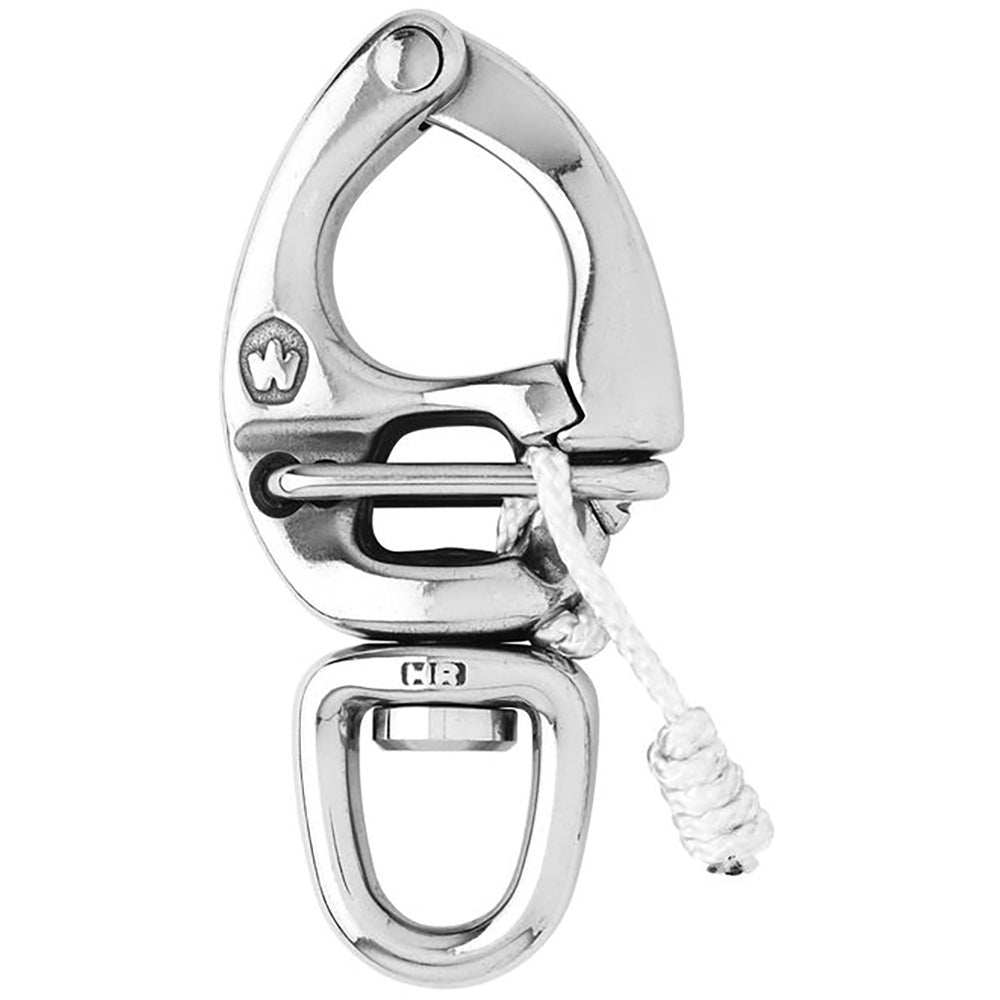

Wichard HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32" [02678]
Wichard HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32" [02678] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Wichard HR Quick Release Snap Shackle With Swivel Eye -150mm Length...
HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"
Features:
- HR forged (17.4 PH) quick-release snap shackle with swivel eye
- The opening is made by pulling the lanyard
- Perfect to attach one sheet or halyard
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect for spinnaker sheets and halyards
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11460 / (kg) 5200
- Breaking load: (lb) 19840 / (kg) 9000
- Weight: (lb) 1.208 / (g) 548

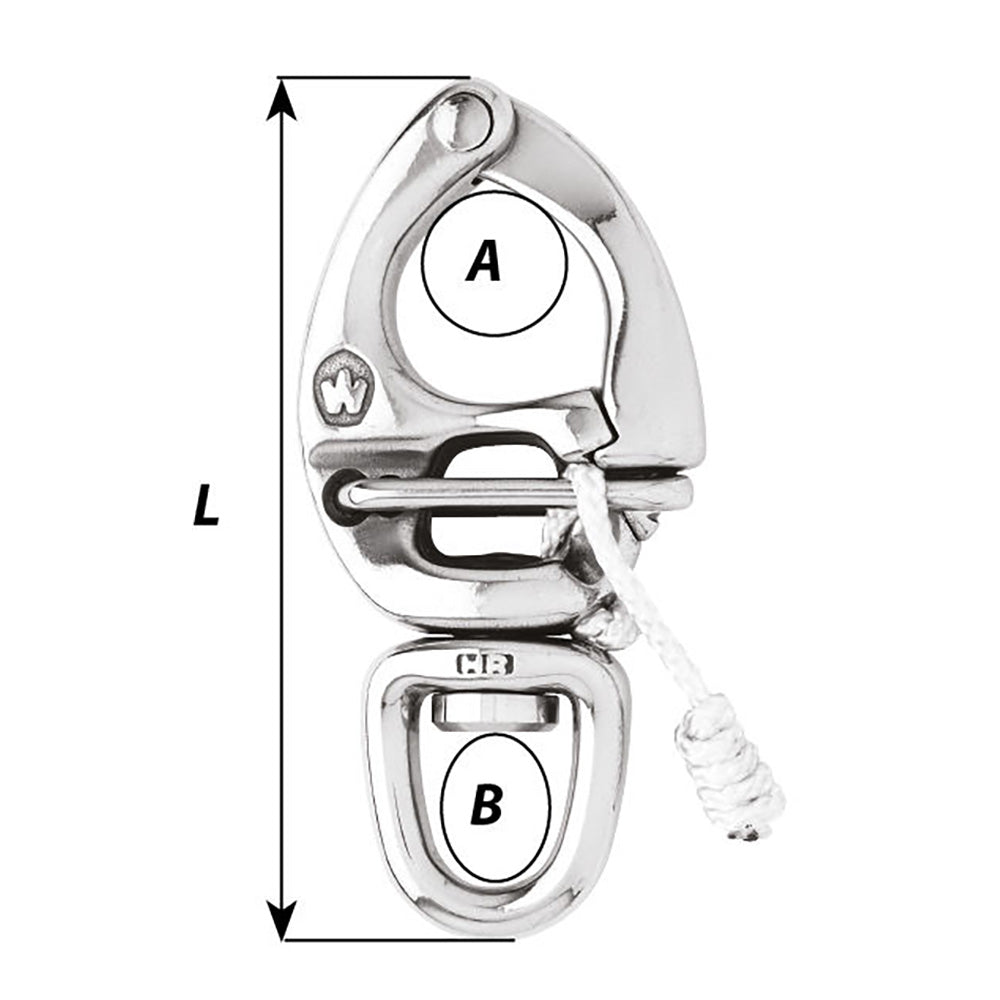

Dimensions:
- A: (inch) 1 11/32" / (mm) 34
- B: (inch) 15/16" / (mm) 24
- Length: (inch) 5 29/32" / (mm) 150
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
