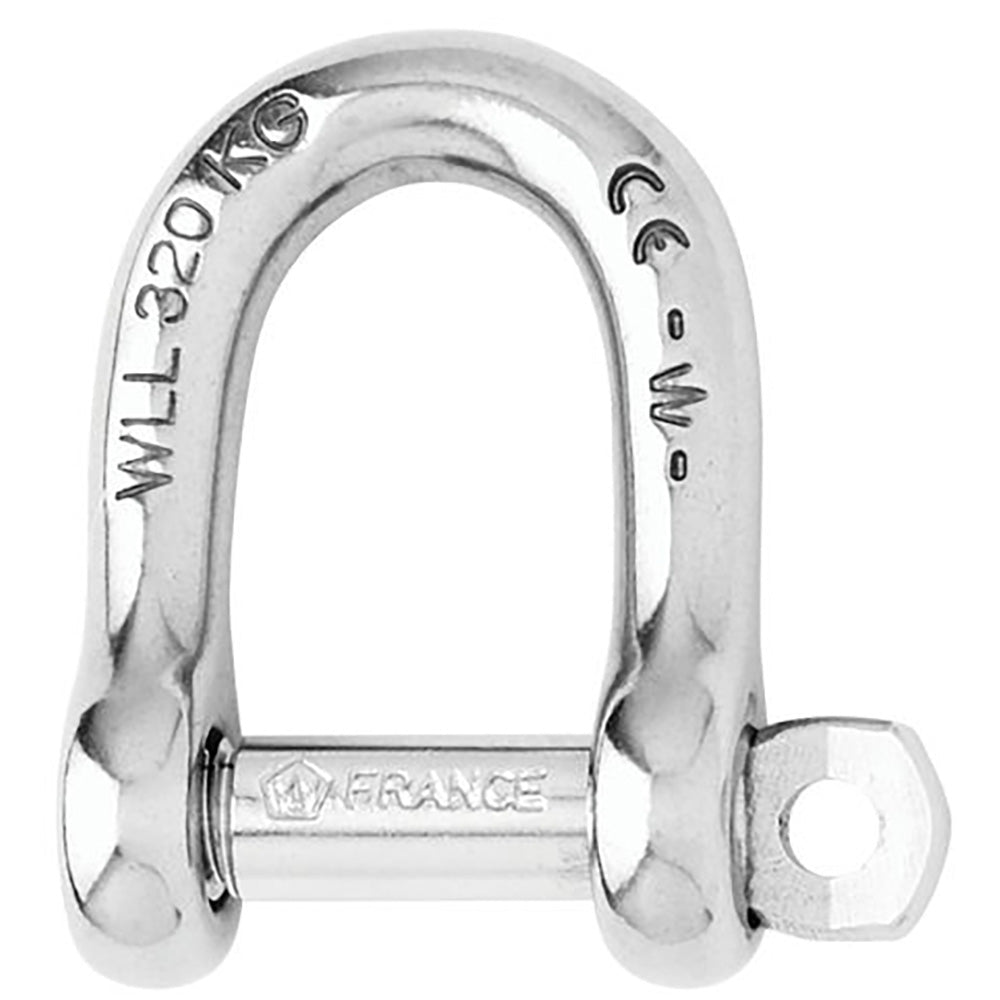

Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" [01206]
Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" [01206] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" [01206]
Self-Locking D Shackle - 12mm Diameter - 15/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 4580 / (kg) 2080
- WLL: (lb) 2640 / 1200 (kg)
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.425 / (g) 193

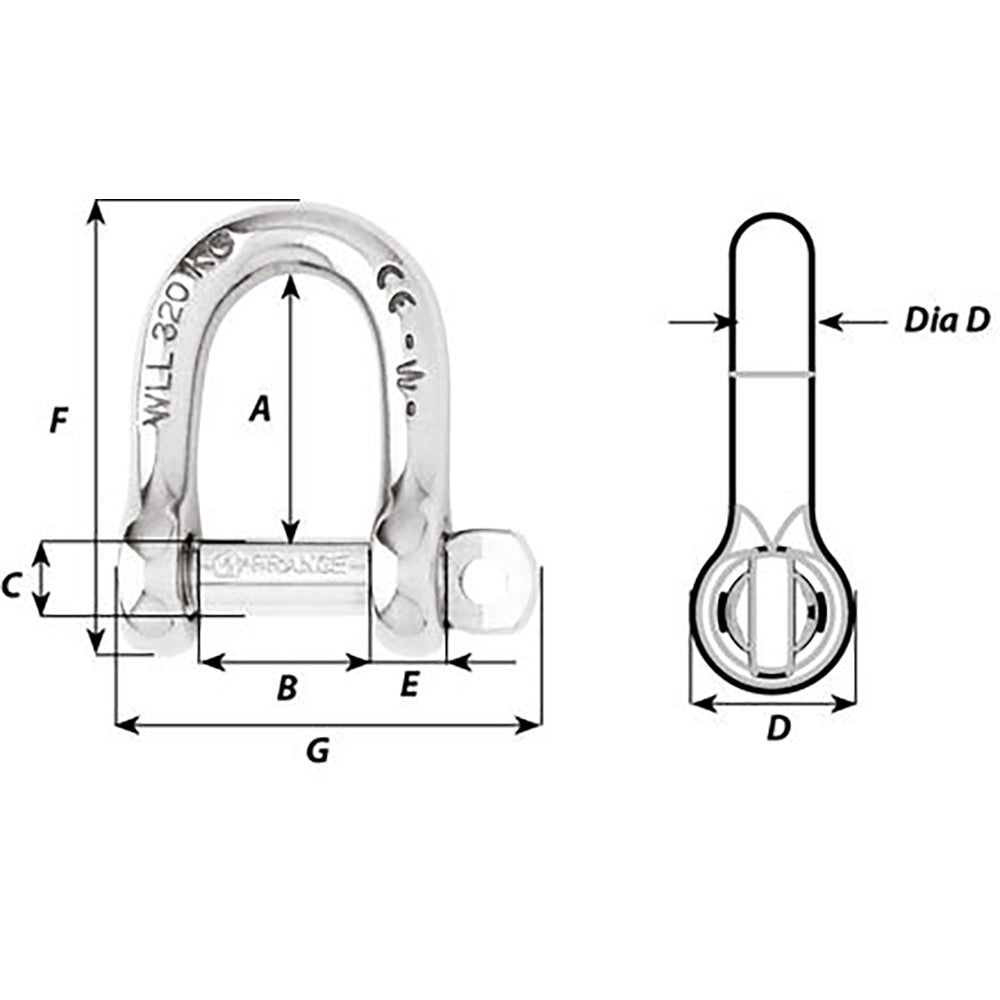

Dimensions:
- A: (inch) 1-21/32" / (mm) 42
- B: (inch) 1-1/16" / (mm) 27
- C: (inch) 15/32" / (mm) 12
- D: (inch) 15/16" / (mm) 24
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 7/16" / (mm) 11
- F: (inch) 2-7/8" / (mm) 73
- G: (inch) 2-7/16" / (mm) 62
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
