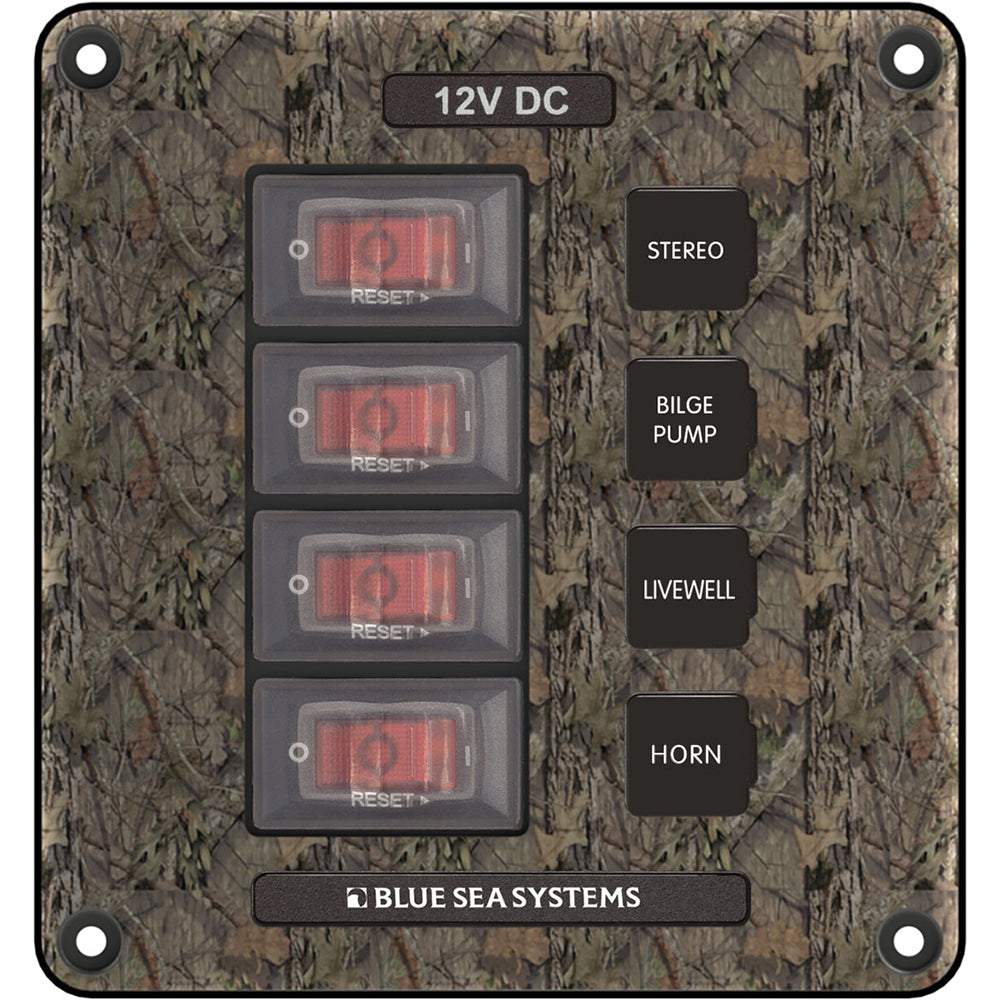

Blue Sea 4323 Circuit Breaker Switch Panel 4 Position - Camo [4323]
Blue Sea 4323 Circuit Breaker Switch Panel 4 Position - Camo [4323] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Blue Sea 4323 Circuit Breaker Switch Panel 4 Position - Camo [4323]
4323 Circuit Breaker Switch Panel 4 Position - Camo
Designed for exposed mounting applications.
Features:
- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea System
Specifications:
- Color: Camo
- Positions: 4
- Nominal Voltage: 12 VDC
- Maximum Amperage: 45A
- Terminal Type: 1/4" Male Quick Connect
- Hardware: Stainless Steel #6 x 5/8" mounting screws
- Ring Terminal Size: M5 (#10)
Specifications:
- Voltage: 12v
- AC/DC: DC
- Max Breaker Quantity: 4
- Waterproof: Resistant
- Box Dimensions: 3"H x 6"W x 10"L WT: 0.5 lbs
- UPC: 632085043230
