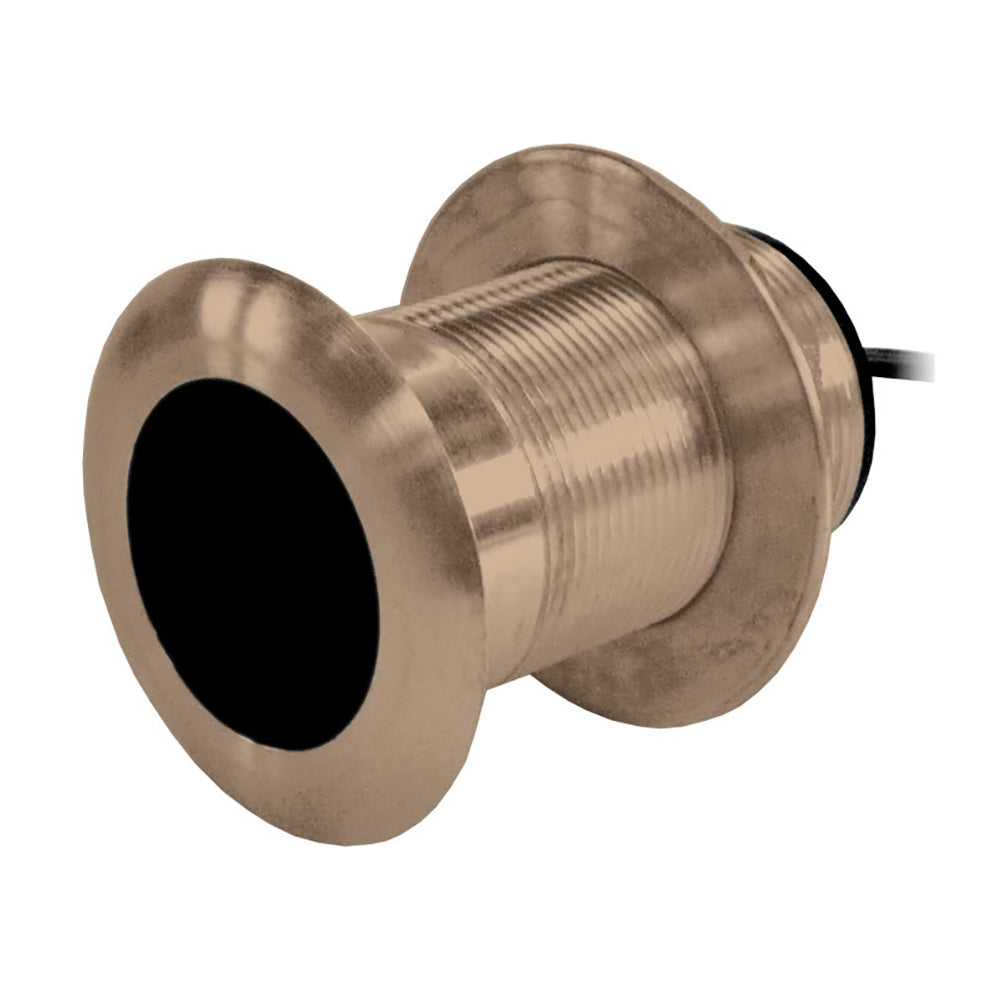

Airmar B117 Bronze 0 Depth Temp w/Ray Connector f/CP370 DSM300 [B117-DT-RAY]
Airmar B117 Bronze 0 Depth Temp w/Ray Connector f/CP370 DSM300 [B117-DT-RAY] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features:
- Bronze Housing
- Depth and Temperature Only
- Usable Shaft Length: 66.5 mm (2.62”)
- Replacement nut—405
- 10 m (33’) cable length
- Boat Size: 8 m (25’) and up
- Ideal for center-console and trailered boats
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz: 800-1200 ft
- 200 kHz: 400-700 ft
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
