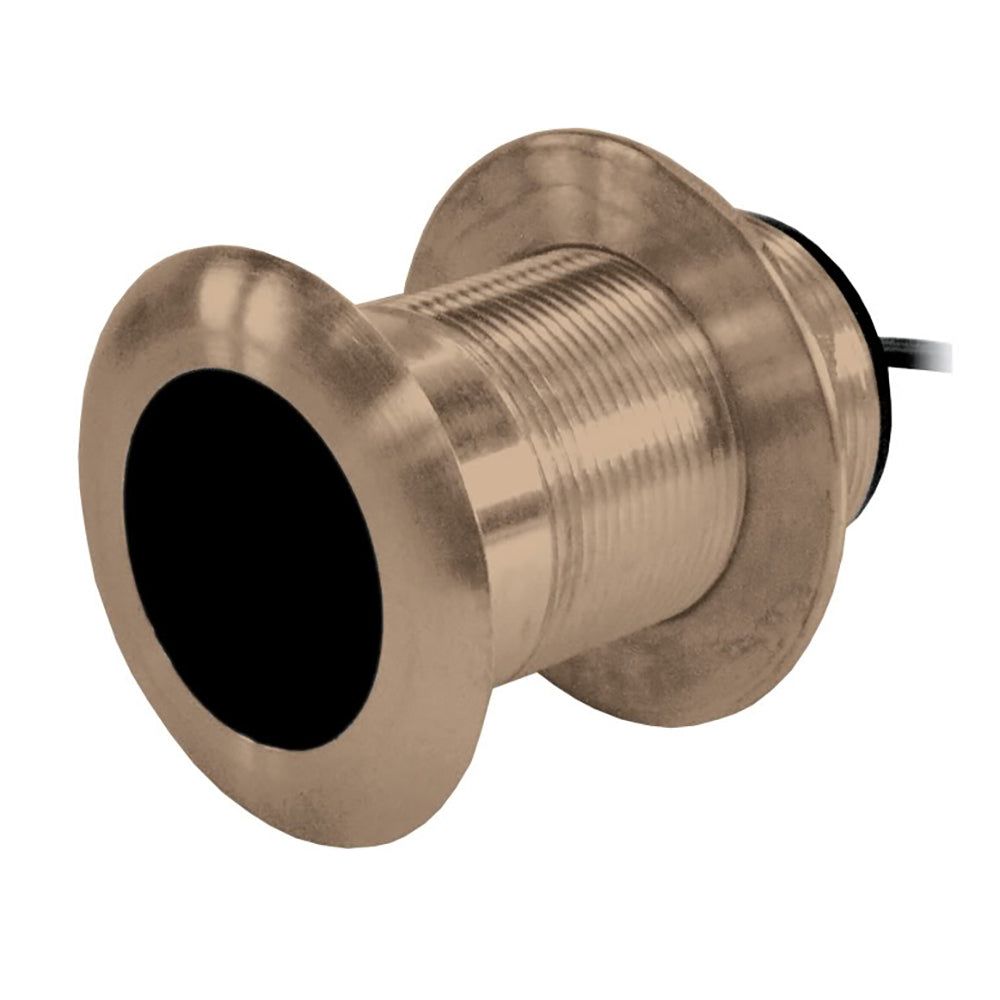

Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB]
Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features
- Industry standard for low-profile transducers
- Depth and temperature
- Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Bronze transducer housing
- Boat Size: 8M (25') and up
Specifications:
- Weight: Bronze - 0.9 kg (2.0 lb)
- Hull Deadrise: Up to 8°
- Acoustic Window: Urethane
- Hole Diameter: 51mm (2")
Specifications:
- Mounting Style: Thru-Hull
- Temperature: Yes
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
