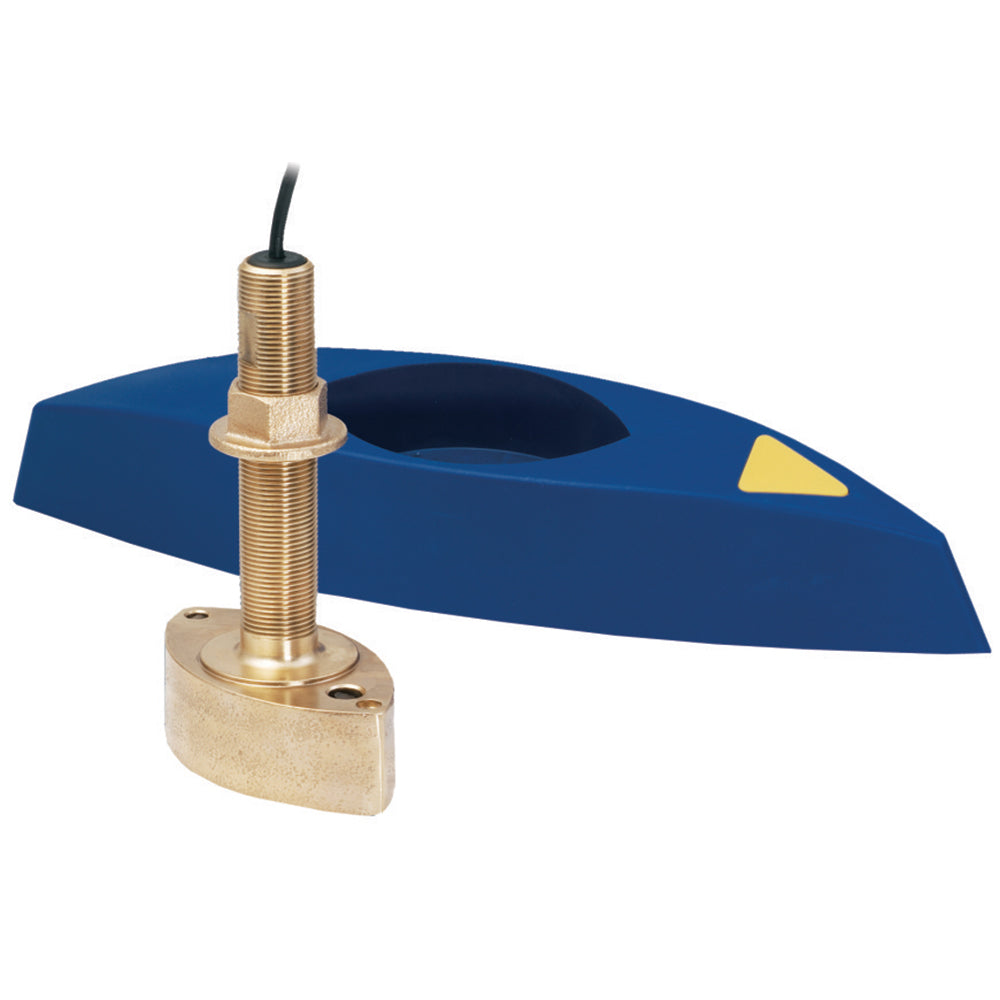

Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block Humminbird #9 Connector [B45-DT-HB]
Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block Humminbird #9 Connector [B45-DT-HB] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector
The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images.
Features:
- Bronze housing
- Depth and Temperature
- Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
- Good sensitivity in a compact housing
- Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
- High-Performance Fairing included
- Usable Shaft Length: 92 mm (3.62”)
- Standard fairing block
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz—235 m to 353 m (800’ to 1,200’)
- 200 kHz—118 m to 206 m (400’ to 700’)
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
Specifications:
- Mounting Style: Thru-Hull
- Box Dimensions: 4"H x 12"W x 16"L WT: 4.6 lbs
- UPC: 801769000177
Brochure (pdf)
