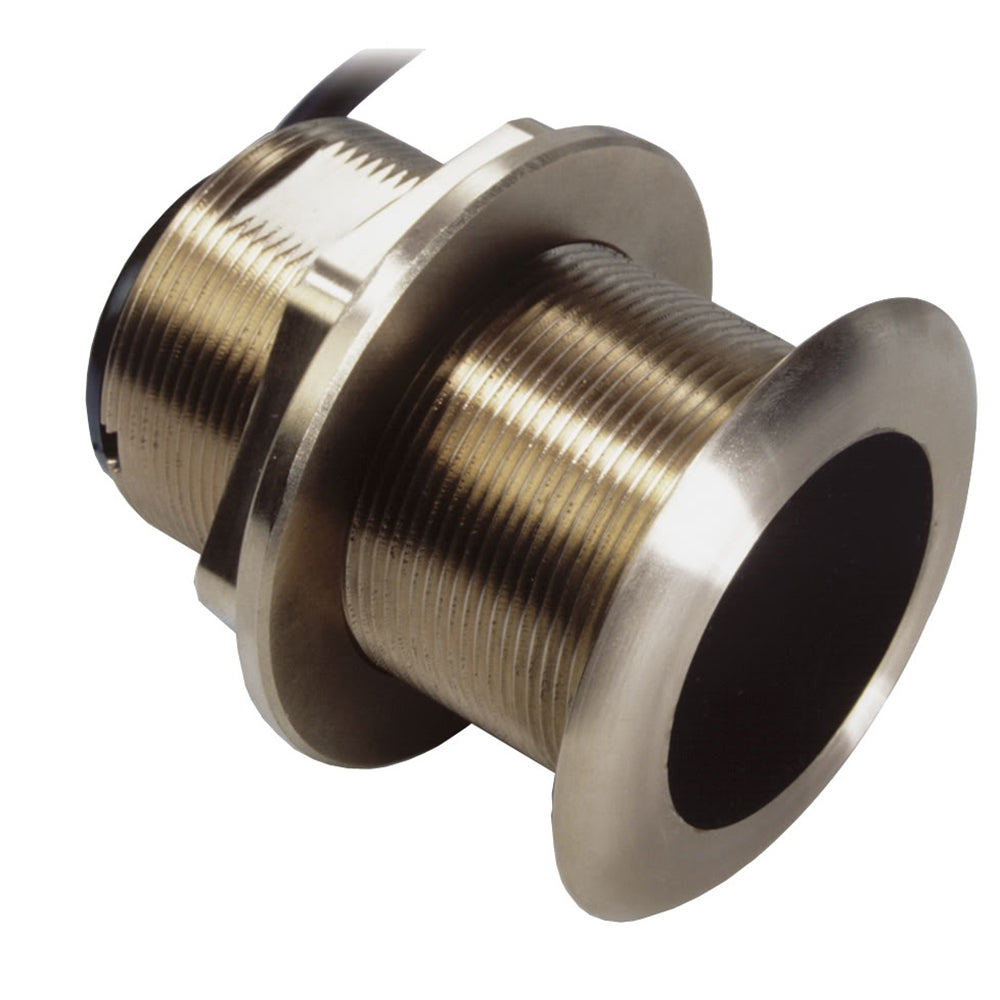

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12 [B60-12-HB]
Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12 [B60-12-HB] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º
The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.
Features:
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Boat Size: Up to 8M (25')
- Bronze transducer housing
Specifications:
- Weight: 1.4 kg (3 lb)
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
Specifications:
- Temperature: Yes
- Mounting Style: Thru-Hull
- Pins: 7
- Box Dimensions: 4"H x 8"W x 11"L WT: 3.55 lbs
- UPC: 801769003772
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
