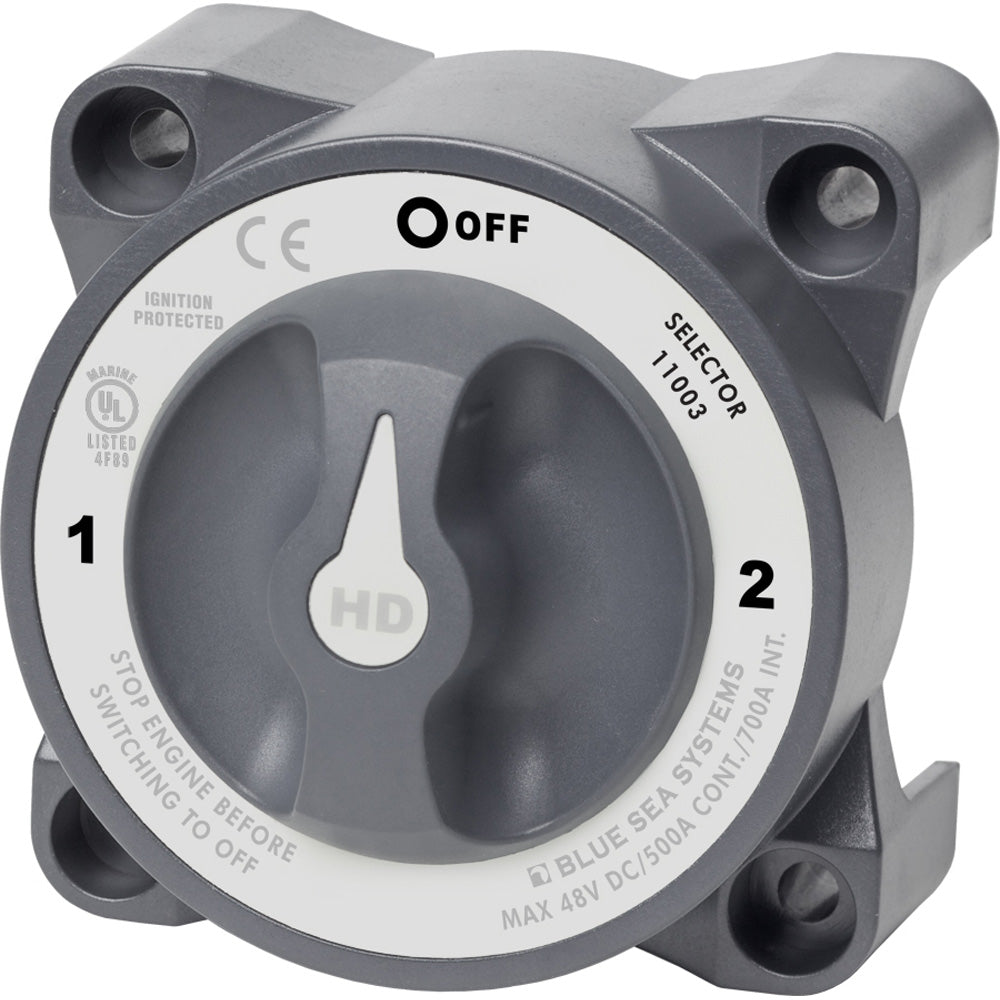

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]
Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconne...
11003
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected safe for installation aboard gasoline powered boats

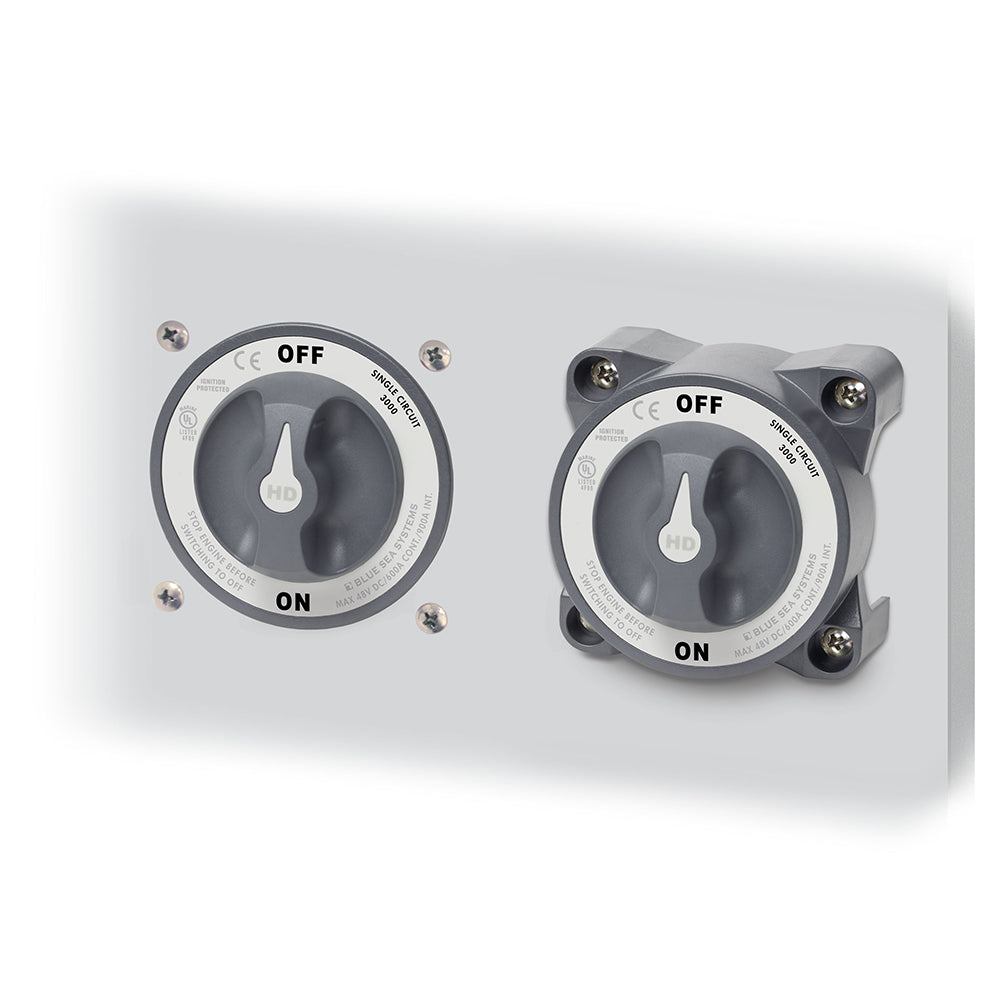

- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables

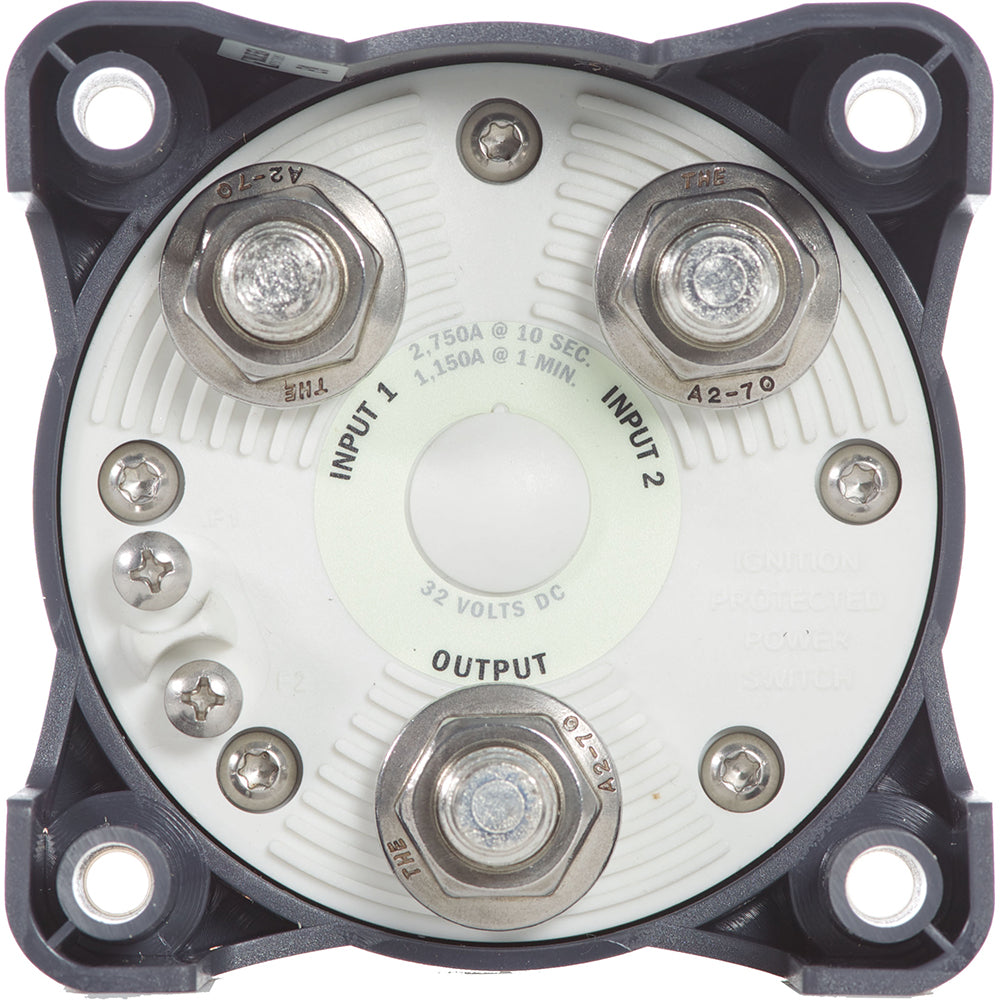

- M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- 10 Sec: 2750A
- AFD: Yes
- Positions: 3
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
- UPC: 632085110031
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
Brochure (pdf)
