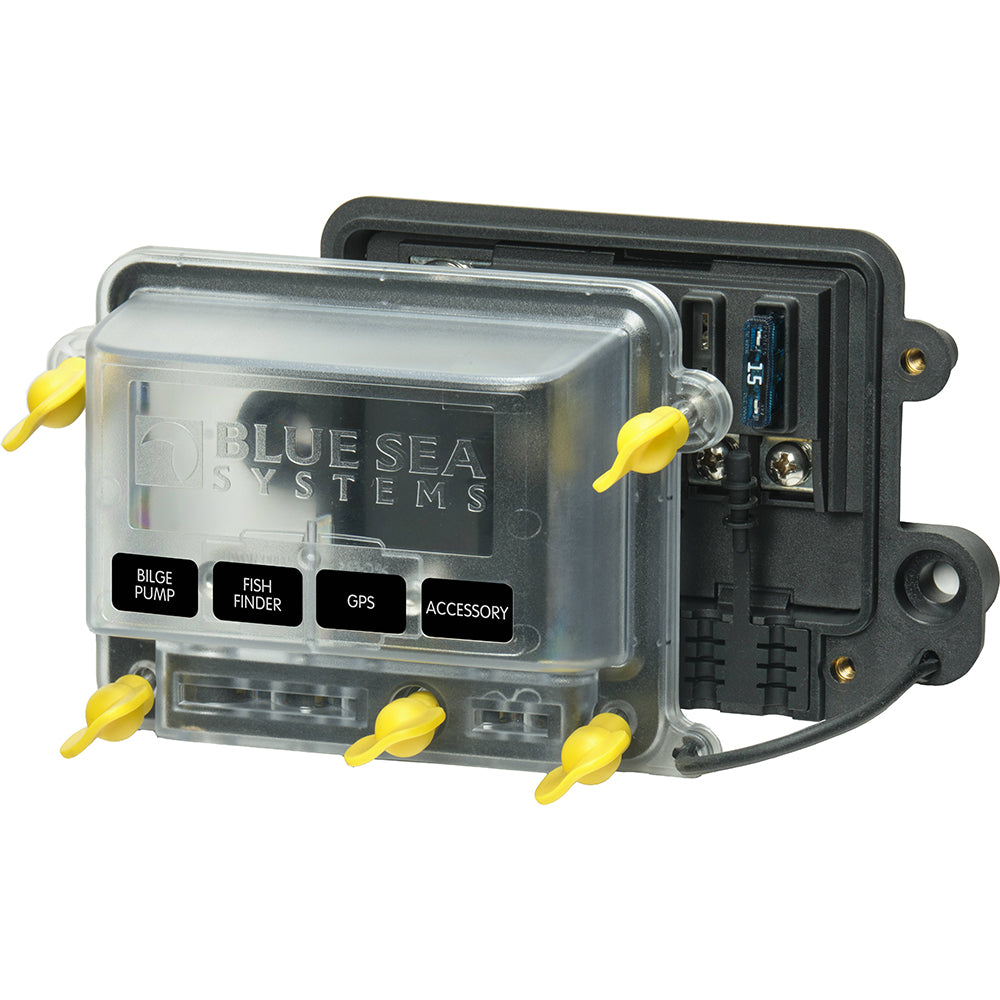

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100]
Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
5056100 - Water Resistant ST-Blade Fuse Block with Cover
This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.
Features:
- Water-resistant design with a standard ring or spade-type terminals
- Allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
- 5056100 meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Spare fuse and fastener storage in cover
- Wing screws designed for tool-free installation of cover to meet ABYC compliance
Technical Specifications:
- Cover - yes
- Maximum Voltage - 32V DC
- Bus Material - Tin-plated Copper
- Mounting Holes - Accepts 1/4" (6mm) screws
- Terminal Screws - 4 x # 8-32 with captive star lock washer
- Wire Size - Input - (1) 8 AWG to 4 AWG
- Wire Size - Load - (4) 16 AWG to 10 AWG
In the Box:
- 5056100 Busbar
- Instruction Manual
*Sold as an Individual
Quick Guide (pdf)
