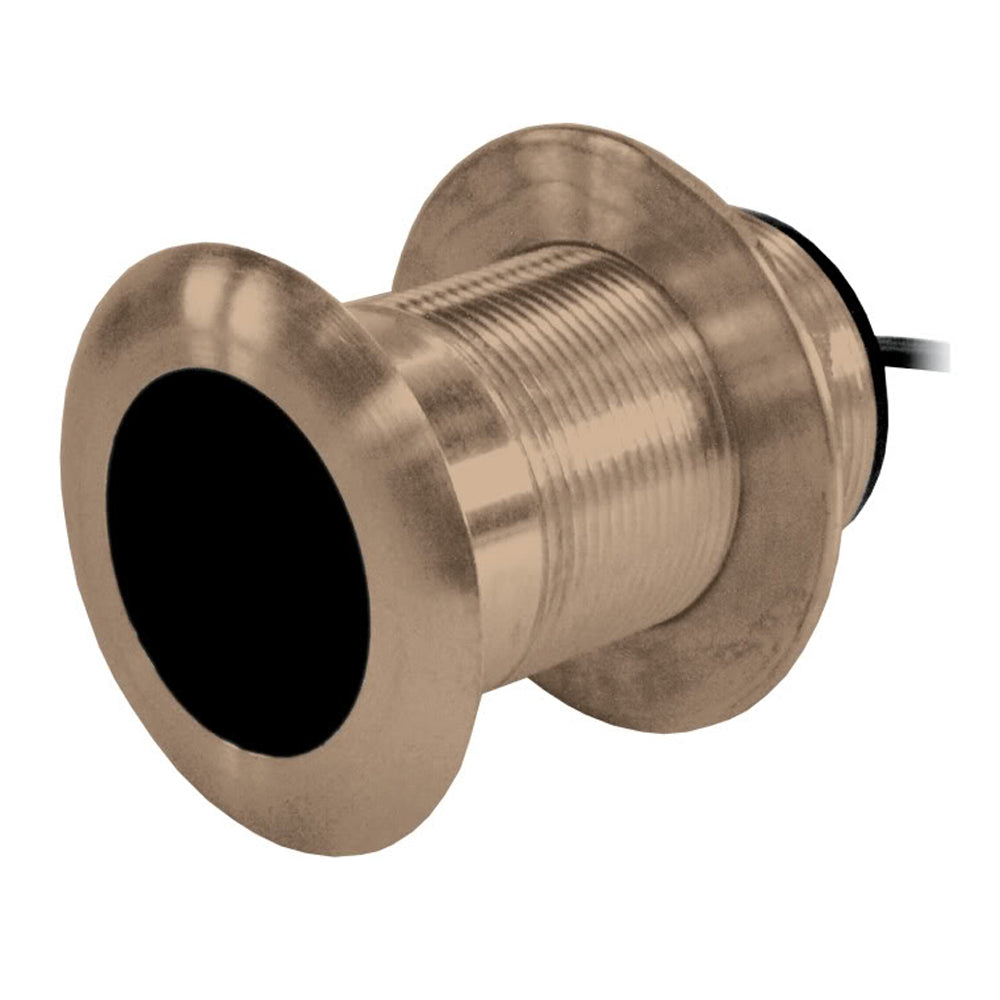

Garmin B117 Bronze Thru-Hull Depth/Temp - 8-Pin [010-10182-21]

B117 Bronze Thru-Hull Depth/Temp - 8-Pin

This bronze thru-hull mount transducer performs well at high speeds.

An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Do not use on metal hulls.

When using with a 6-pin Garmin sounder, a transducer adapter cable is required

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 39'
• Pins: 8
• Box Dimensions: 4"H x 6"W x 8"L WT: 3.85 lbs
• UPC: 753759971762
