Humminbird XTM-9-HW-MDI-75-T MEGA DI Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX 7/8 MEGA DI [710296-1]
Humminbird XTM-9-HW-MDI-75-T MEGA DI Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX 7/8 MEGA DI [710296-1] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

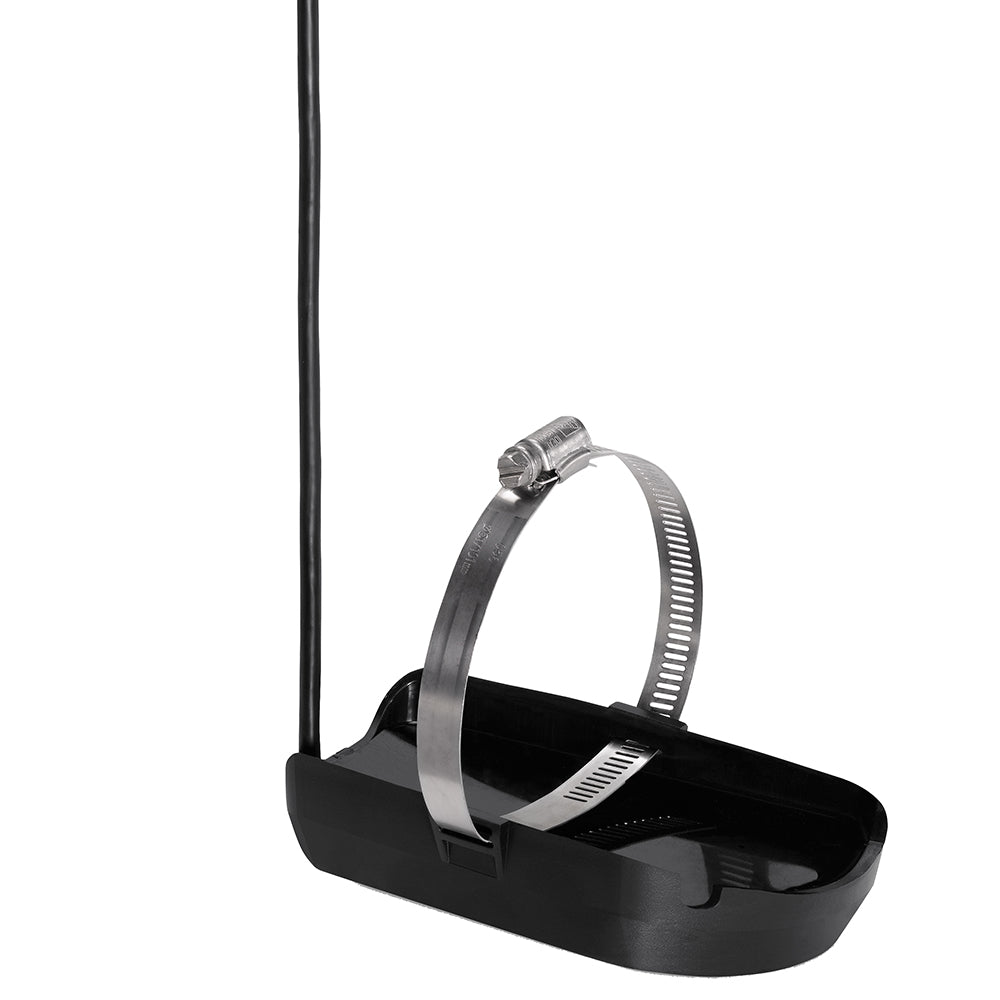

XTM-9-HW-MDI-75-T MEGA DI Dual Spectrum CHIRP Trolling Motor Transducer with Temp for HELIX® 7/8 MEGA DI
MEGA Down Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.
Features:
- This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Mounting Style: Trolling Motor
- Cable Length (Feet): 20'
- Imagining: Standard/Down
- Chirp: High Wide
- Temperature: Yes
- Speed Included: No
- Box Dimensions: 4"H x 8"W x 9"L WT: 1.65 lbs
- UPC: 082324053528
Owner's Manual (pdf)
