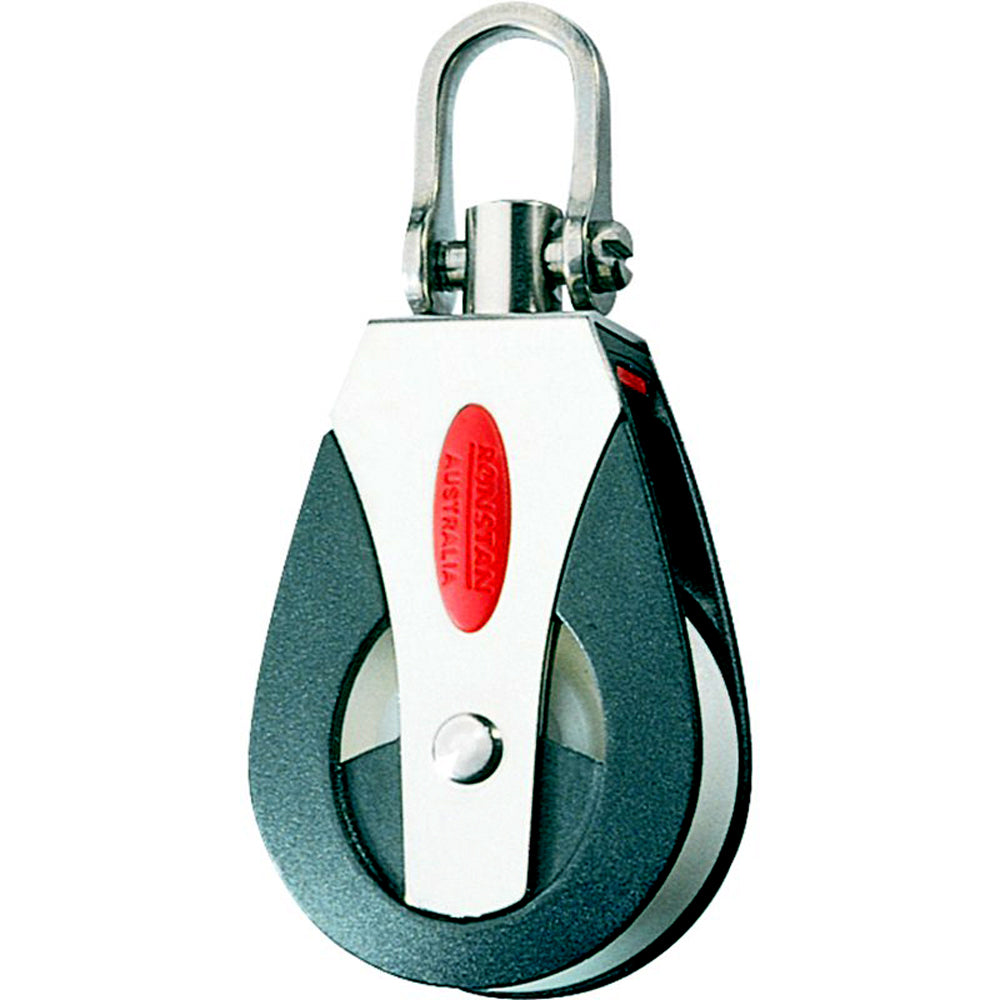

Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF40100]
Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF40100] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ronstan Series 40 Ball Bearing Block - Single - Universal Head [RF4...
Series 40 Ball Bearing Block - Single - Universal Head
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required.
Features:
- Low friction Acetal or Torlon® bearing system
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Captive Lock universal head
- Slotted pin shackle eliminates fouled lines
Applications:
- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')
Materials:
- U.V. Stabilized Acetal sheaves
- Acetal ball bearings
- Impact and U.V. resistant, fiber reinforced Nylon cheeks
- Grade 316 stainless steel load strap and head fitting
Specifications:
Sheave Ø: 40mm(1-9/16")
Max. Rope Ø: 10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.: 350kg(770lbs)
B. L.: 1,000kg(2,200lbs)
Weight: 70g(2.5oz)
