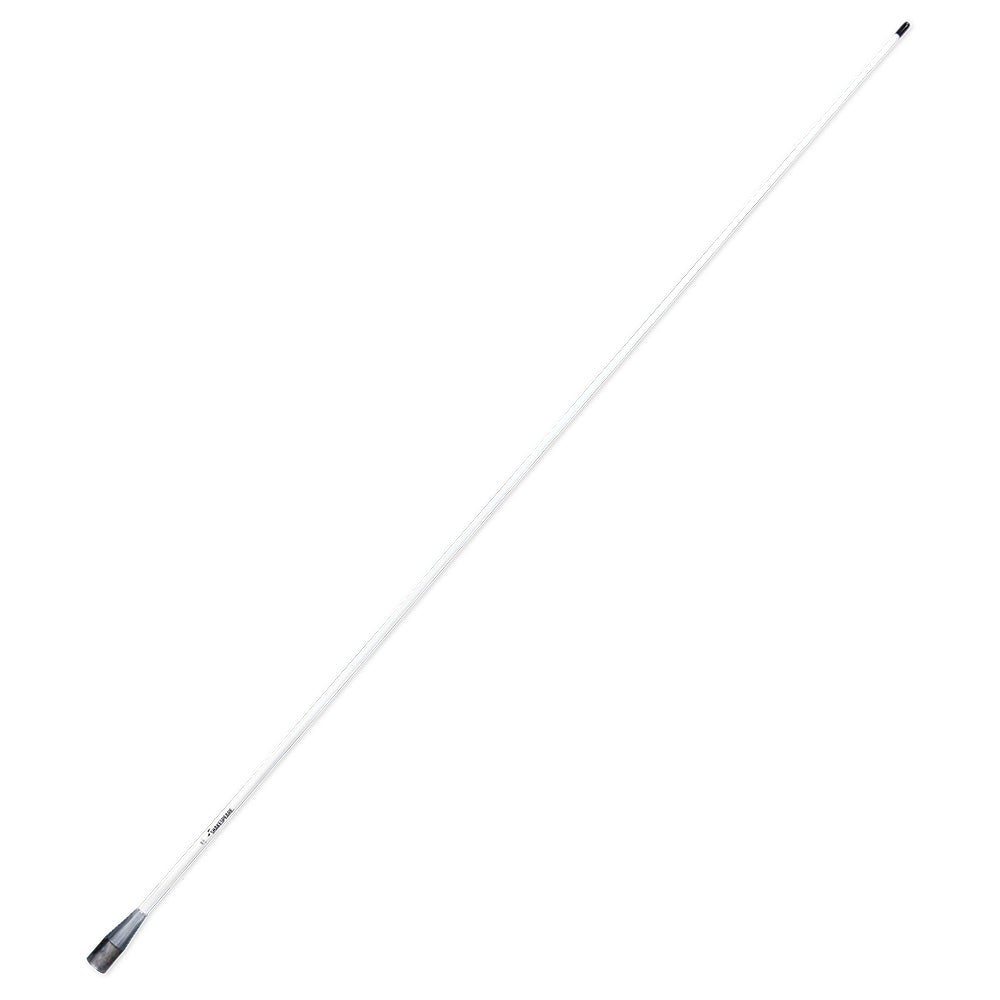

Shakespeare 396-1 5' VHF Antenna [396-1]
Shakespeare 396-1 5' VHF Antenna [396-1] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Shakespeare 396-1 5' VHF Antenna [396-1]
Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements

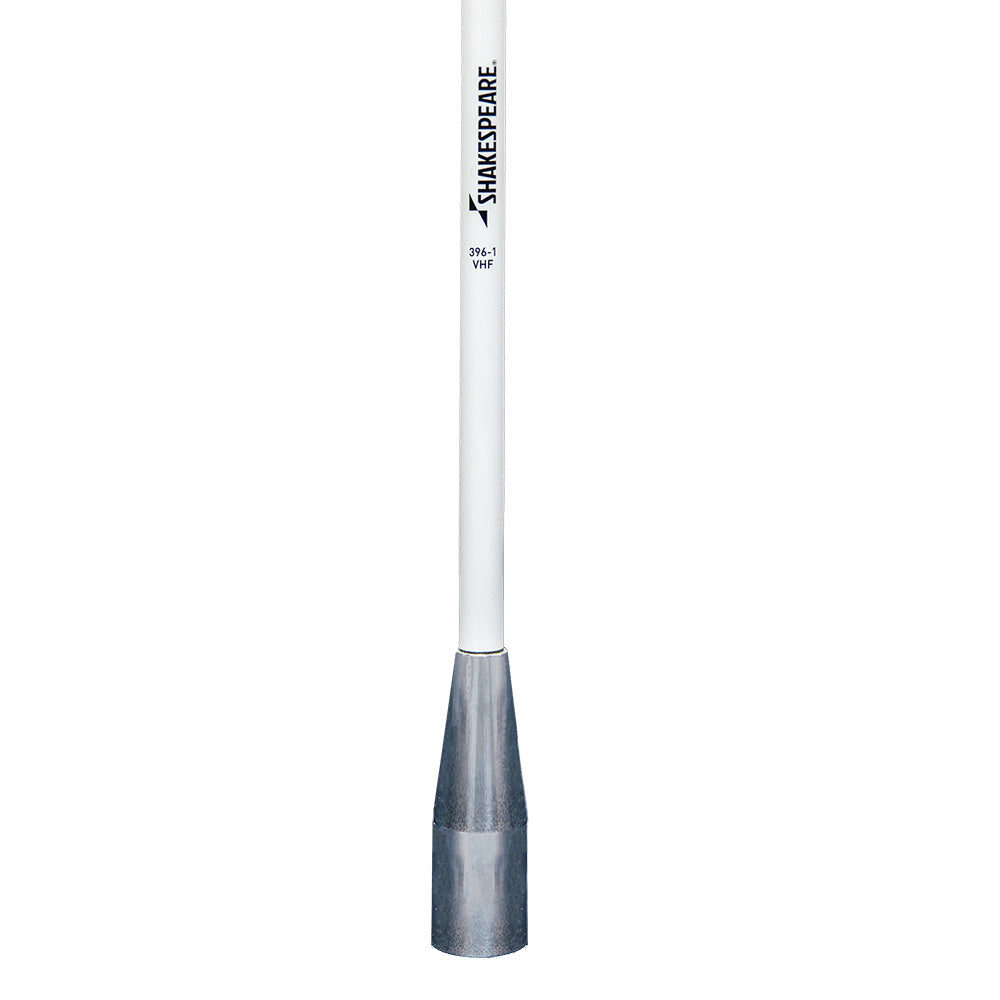

- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15' RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Ferrule Type: Chrome Plated
- Length (Inches): 60"
- Box Dimensions: 3"H x 3"W x 63"L WT: 2.9 lbs
- UPC: 719441100018
Quick Guide (pdf)
