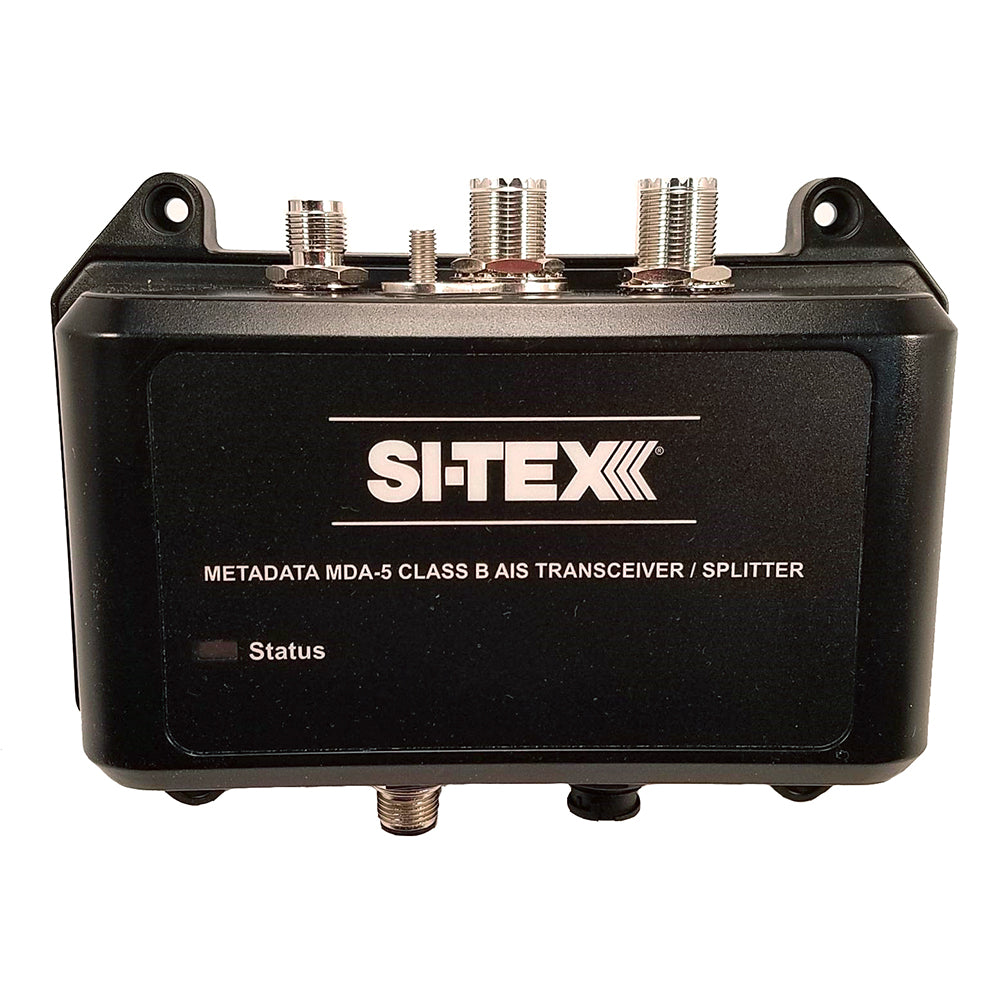

SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter Long Range Wi-Fi [MDA-5]
SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter Long Range Wi-Fi [MDA-5] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In ...
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi
Features:
- The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
- 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
- SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
- Intergrated zero loss VHF antenna splitter - no second antenna needed
- Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
- NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
- Built-In GPS & GLONASS satellite navigation receiver
- Water Proof certified to IPX7
- Dual Receivers decodes all DSC & AIS messages, including MOB & SART
- Ultra-power efficient
- IEC-62287-2, FCC and USCG certified
- 2 Year Warranty
Package Includes:
- Commercial Grade External GPS Antenna with Coax Cable
- Mounting hardware
- Power & Data Interface cable
- VHF Radio Connection cable
- Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
- User Manual & Quick Start Guide
Specifications:
- Transmitter Output Power: 5 Watts
- VHF Antenna Connector SO-239 UHF
- GPS Antenna Connector TNC
- Frequency Range: 156.025-162.025 Mhz
- Input Voltage: 9.6-31.2 VDC
- Current Draw: 220mA average power consumption
- Operating Temperature Range: -25C to +55xC
- Ingress Protection: IP67
- Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
- Weight 0.8 lbs.
Specifications:
- AIS Class: B
- GPS Included: Yes
- Function: Receive/Transmit
- Display Included: No
- Antenna Included: No
- Box Dimensions: 5"H x 10"W x 14"L WT: 3.5 lbs
- UPC: 010407510705
Quick Guide (pdf)
Owner's Manual (pdf)
