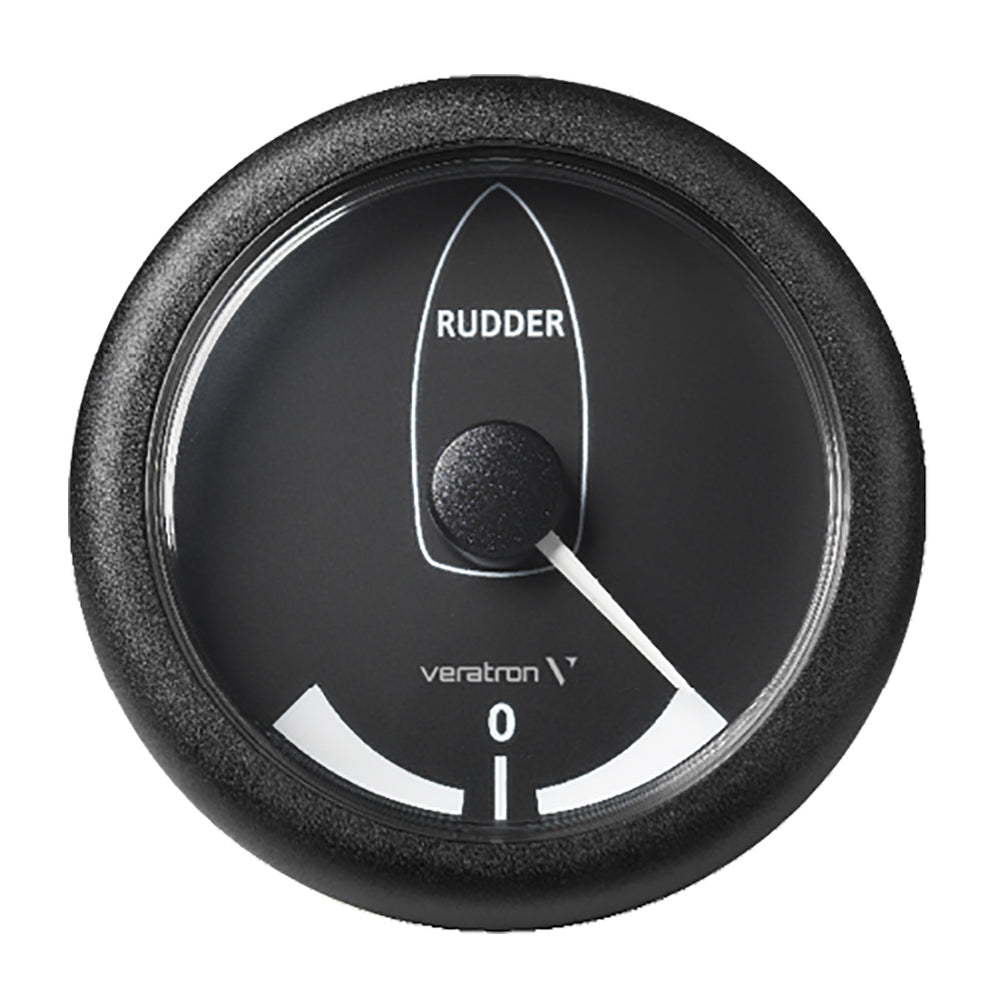

Veratron 3-3/8" (85MM) ViewLine Rudder Angle Indicator -45/+45 - 8 to 32V - Black Dial Bezel [A2C59512410]
Veratron 3-3/8" (85MM) ViewLine Rudder Angle Indicator -45/+45 - 8 to 32V - Black Dial Bezel [A2C59512410] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Veratron 3-3/8" (85MM) ViewLine Rudder Angle Indicator -45/+45...
3-3/8" (85MM) ViewLine Rudder Angle Indicator -45°/+45° - 8 to 32V - Black Dial & Bezel
The ViewLine rudder angle instrument for wheel-controlled yachts and pleasure boats displays the current rudder position at all times. This indicator makes it easier to navigate out of harbors or through locks.
Only rudder instruments of the same diameter can be combined.
Specifications:
- 8 and 14 pole Tyco / Hirschmann bush housing
- Operating voltage 8 – 32 V
- Accuracy +/- 2.5 % of full scale reading
- Anti-fog double lens
- Protection rating front IP67, rear IP52
- 85 mm installation diameter
- 50 mm installation depth
- Operating temperature range -20 °C / +70 °C
- Reverse polarity protection
Specifications:
- Voltage - Input Range (Volts): 8-32v
- Gauge Size: 3-3/8"
- Box Set: No
- Series: ViewLine
- Gauge Type: Rudder Angle
- Box Dimensions: 4"H x 7"W x 8"L WT: 0.65 lbs
- UPC: 7640178722279
Quick Guide (pdf)
