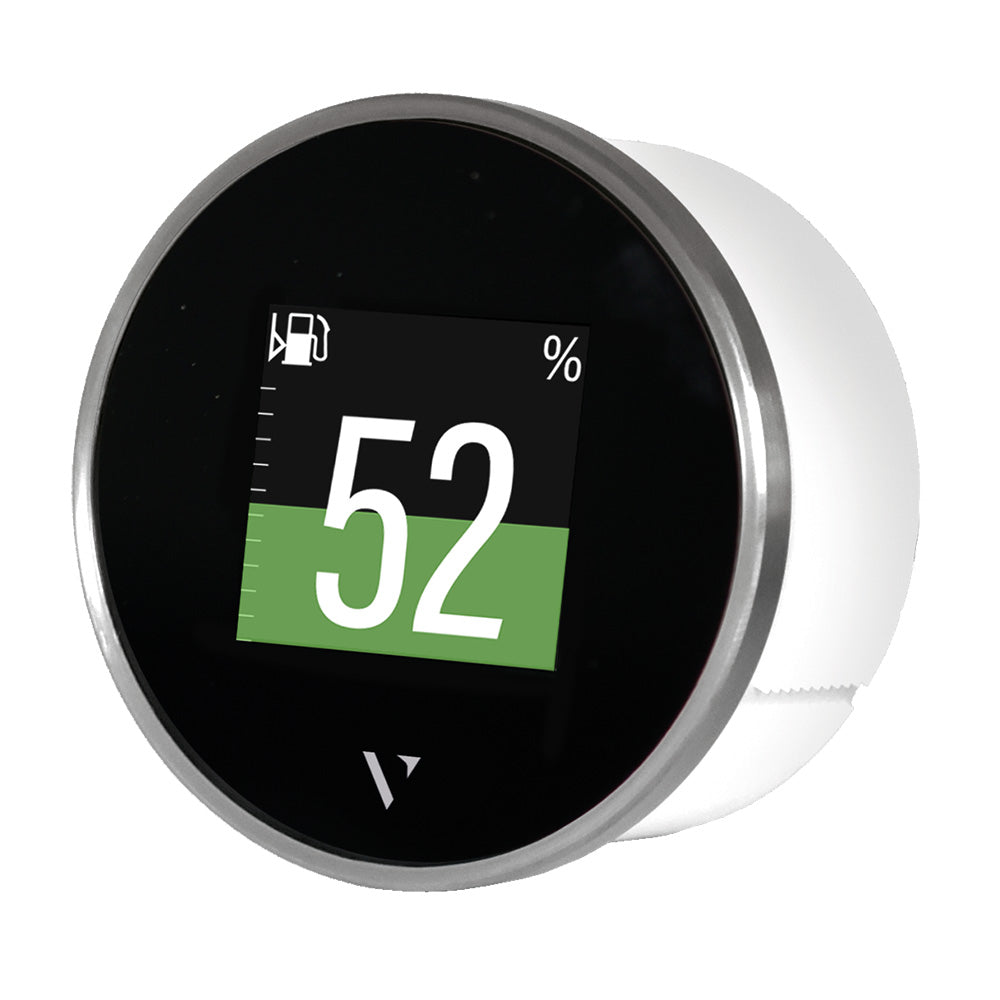

Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - J1939 [B00127801]
Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - J1939 [B00127801] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - J1939 [...
52mm (2-1/16") VMH Flex Multifunction Gauge - J1939
Small but powerful, the VMH Flex is the perfect compromise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens. Every screen can be freely customized with your most important information, and the setup – including alarms – is easily done with your smartphone just with a tap.
Features:
- Up to 5 scrollable screens in single or dual layout
- Functions - Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery
- Innovative laser touch-button reliable in every practical condition
- SAE J1939 connectivity
- 2x analog resistive inputs for direct sensor connections
- LIN port for Intelligent Battery Sensor
Technical Specifications:
- Nominal Voltage - 12/24V
- Operating Voltage - 9-32V
- Protection Class - IPX7
- Dimensions - 60mm (outer), 52mm (mounting hole)
- Display - 1.44" sun-readable color TFT display
- Resolution - 125 x 125 pixels
- Analog Inputs - 1x resistive, 1x frequency
- Connectors - Tyco / Hirschmann MQS connector 8-pin
- Digital Ports - J1939, LIN bus
- Wireless Interface - NFC
In the Box:
- 1x VMH Flex – J1939
- 1x 52 mm Spinlock Nut
- 1x Rubber Sealing Gasket
- 1x Wiring Harness – J1939
- 1x Safety Instructions and Veratron Card
Owner's Manual (pdf)
