Victron Galvanic Isolator VDI-16A, 16 AMP Max Waterproof Potted [GDI000016000]
Victron Galvanic Isolator VDI-16A, 16 AMP Max Waterproof Potted [GDI000016000] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Victron Galvanic Isolator VDI-16A, 16 AMP Max Waterproof Potted [GD...

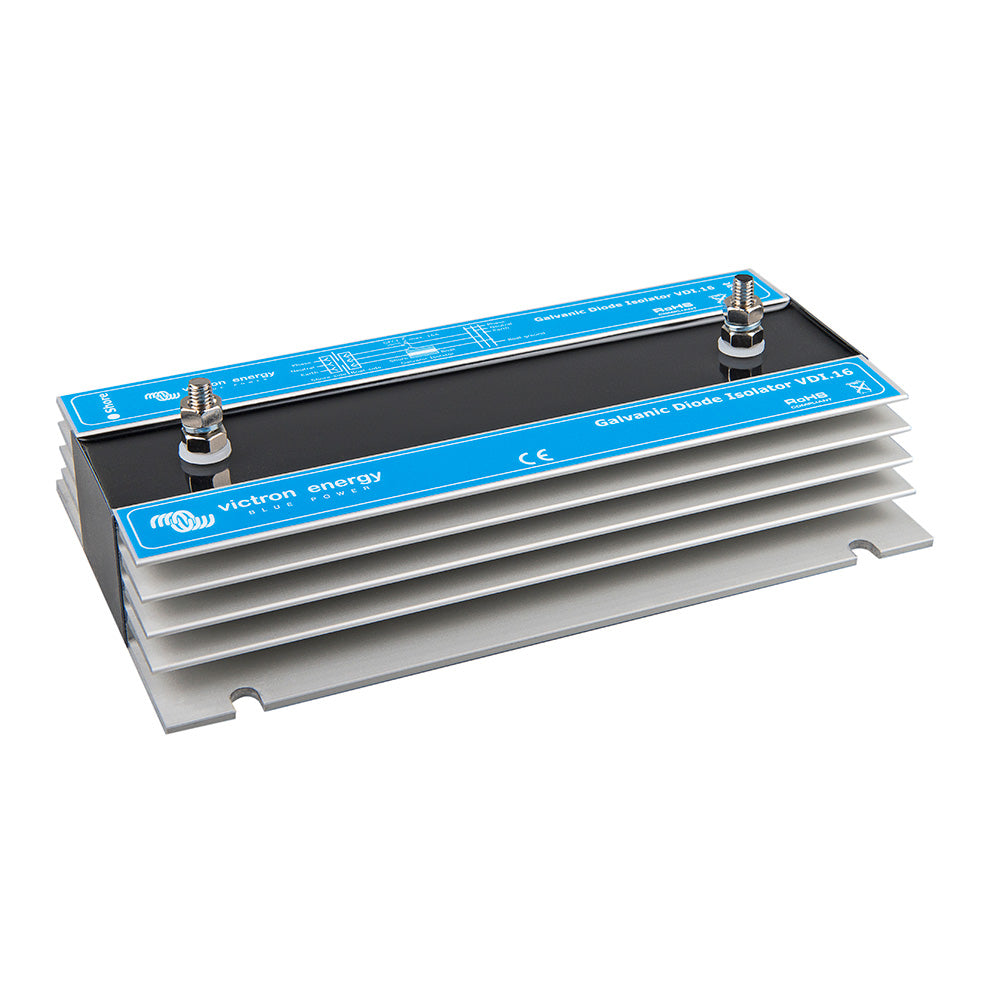

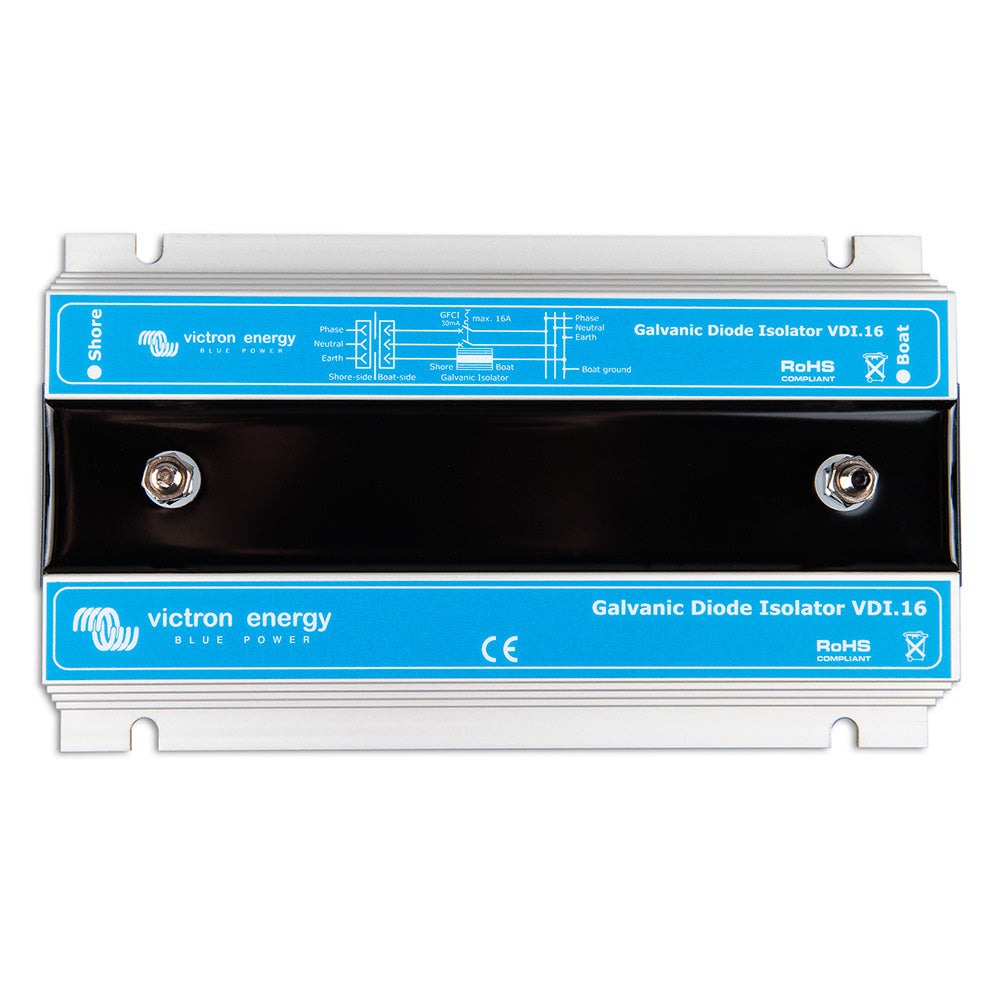

Galvanic Isolator VDI-16A, 16 AMP Max Waterproof Potted
The galvanic isolator prevents electrolytic corrosion. It blocks low-voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft, and so on.
The galvanic isolator consists internally of two diodes which are connected in an anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.
The isolator is installed directly behind your boat's 120V - 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
Please contact your dealer for any returns, repairs or support issues related to this product.Owner's Manual (pdf)
