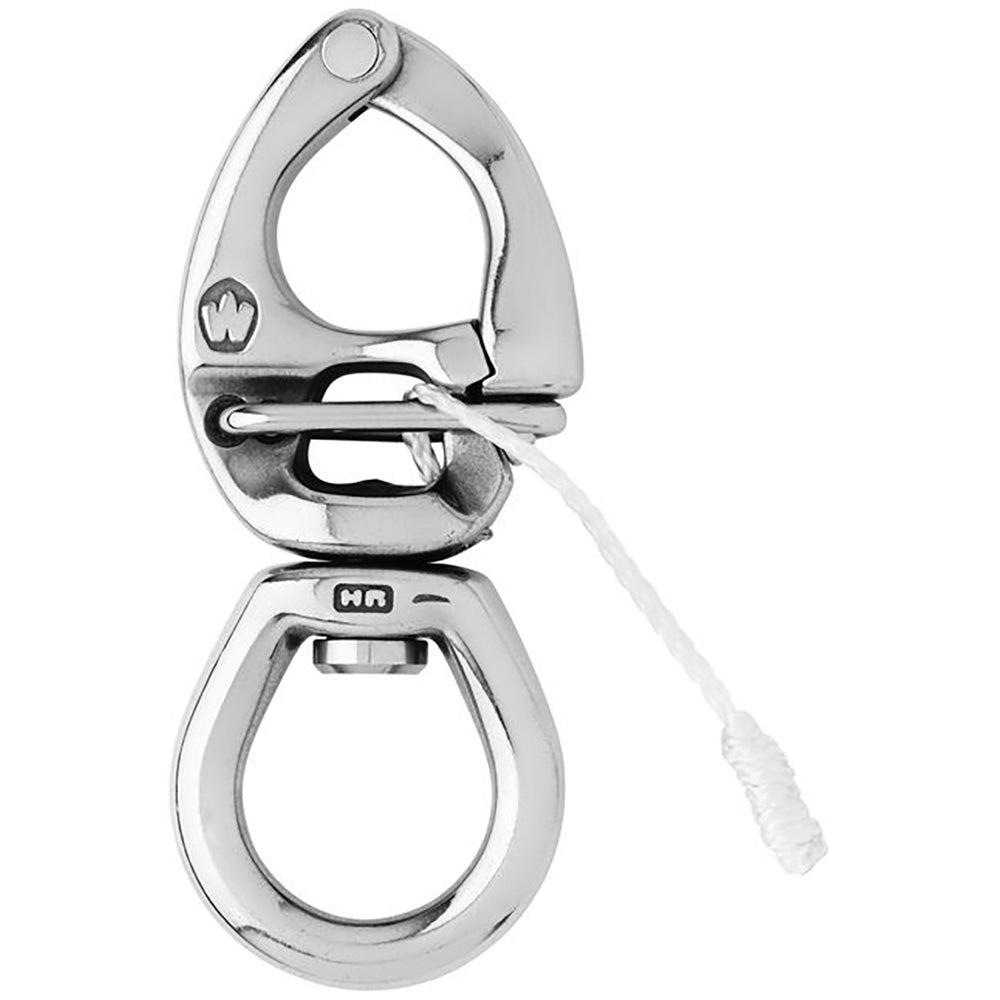

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [02777]
Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [02777] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length...
HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 6170 / (kg) 2800
- Breaking load: (lb) 13880 / (kg) 6300
- Weight: (lb) 0.873 / (g) 396

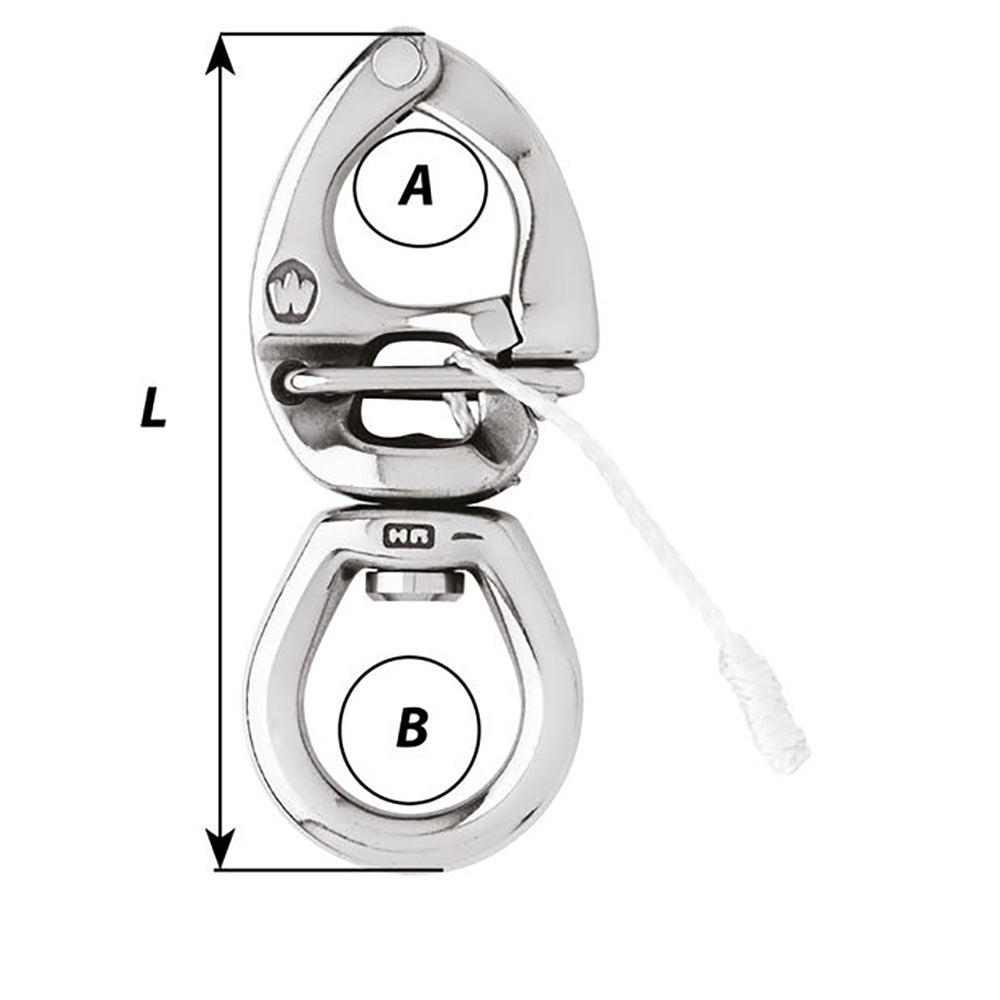

Dimensions:
- A: (inch) 1 3/16" / (mm) 30
- B: (inch) 1 25/64" / (mm) 35.5
- Length: (inch) 5 45/64" / (mm) 145
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
