Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [02376]
Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [02376] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16&quo...
HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
- Its flat design allows attaching a webbing
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- Breaking load: (lb) 8480 / (kg) 3850

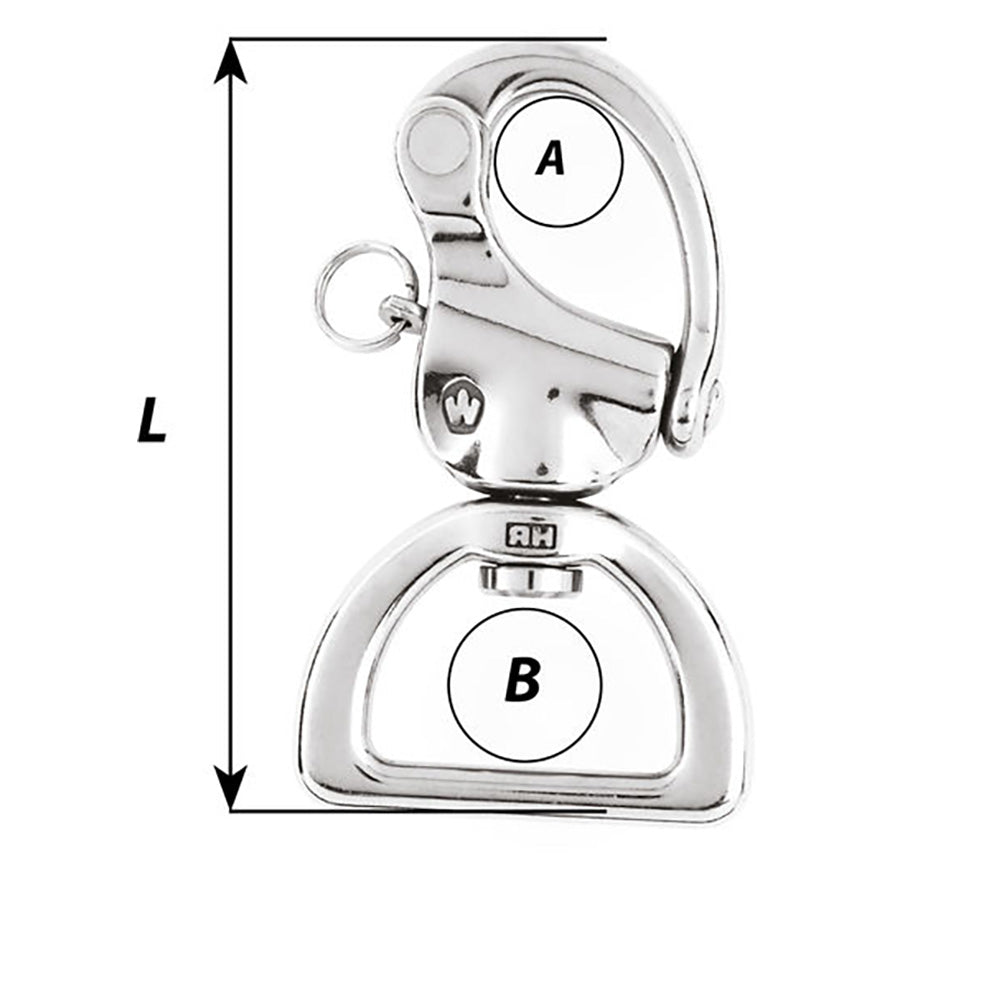

Dimensions:
- A: (inch) 53/64" / (mm) 21
- B: (inch) 1 37/64" / (mm) 40
- Length: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
